adore::fun::DecoupledLFLCPlanner< K, P > Class Template Reference

#include <decoupled_lflc_planner.h>

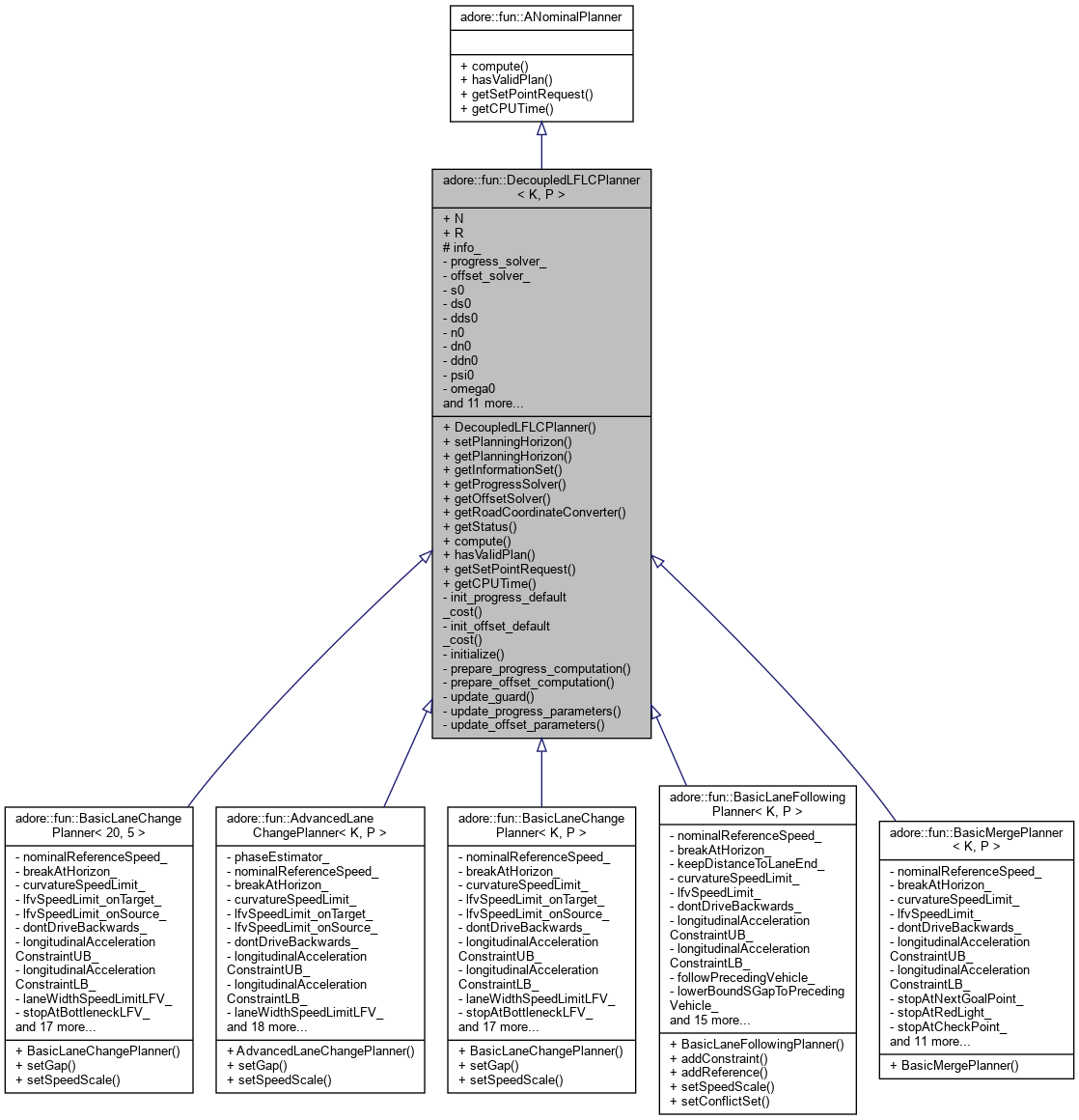

Inheritance diagram for adore::fun::DecoupledLFLCPlanner< K, P >:
Inheritance graph

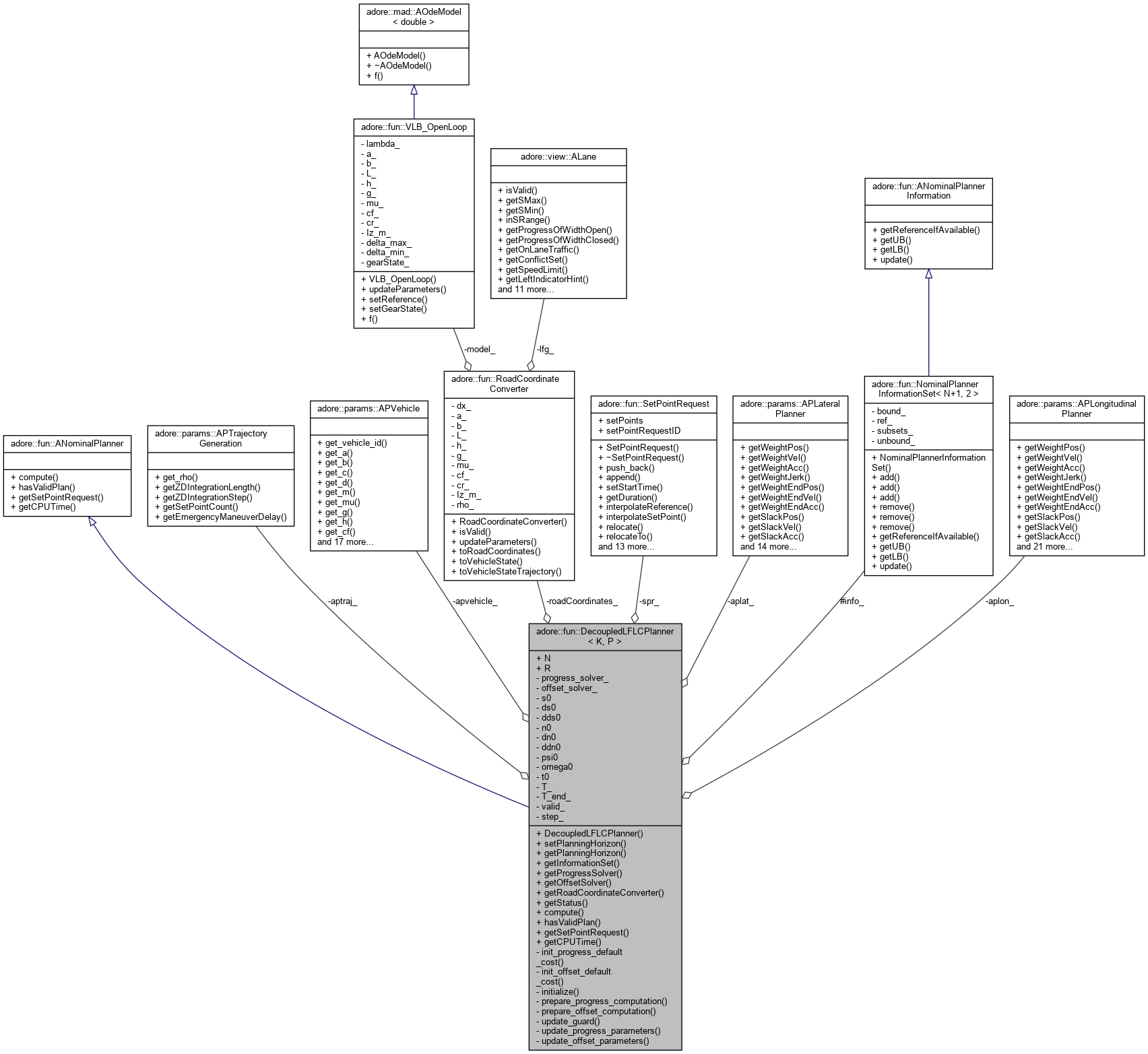

Collaboration diagram for adore::fun::DecoupledLFLCPlanner< K, P >:
Collaboration graph

Public Types

typedef adore::mad::LQ_OC_single_shooting< N, R, K, P > TProgressSolver

typedef adore::mad::LQ_OC_single_shooting< N, R, K, P > TOffsetSolver

typedef NominalPlannerInformationSet< N+1, 2 > TInformationSet


Public Member Functions

 DecoupledLFLCPlanner (adore::view::ALane *lfv, adore::params::APLongitudinalPlanner *aplon, adore::params::APLateralPlanner *aplat, adore::params::APVehicle *apvehicle, adore::params::APTrajectoryGeneration *aptrajectory)

void setPlanningHorizon (double Tend)

double getPlanningHorizon () const

TInformationSet & getInformationSet ()

TProgressSolver & getProgressSolver ()

TOffsetSolver & getOffsetSolver ()

RoadCoordinateConverter & getRoadCoordinateConverter ()

std::string getStatus ()

virtual void compute (const VehicleMotionState9d &initial_state) override

virtual bool hasValidPlan () const override

virtual const SetPointRequest * getSetPointRequest () const override

virtual double getCPUTime () const override


Static Public Attributes

static const int N = 3

static const int R = 1


Protected Attributes

TInformationSet info_


Private Member Functions

void init_progress_default_cost ()

void init_offset_default_cost ()

void initialize (double Tend)

void prepare_progress_computation ()

void prepare_offset_computation ()

bool update_guard (double &target, double value)

void update_progress_parameters ()

void update_offset_parameters ()


Private Attributes

TProgressSolver progress_solver_

TOffsetSolver offset_solver_

double s0

double ds0

double dds0

double n0

double dn0

double ddn0

double psi0

double omega0

double t0

double T_ [K+1]

double T_end_
 time steps, incl. 0 at 0 More...

RoadCoordinateConverter roadCoordinates_
 end time of plan, defines planning horizon as [0,T_end_] More...

adore::params::APLongitudinalPlanner * aplon_

adore::params::APLateralPlanner * aplat_

adore::params::APTrajectoryGeneration * aptraj_

adore::params::APVehicle * apvehicle_

SetPointRequest spr_

bool valid_
 the result as a set-point request More...

int step_


Detailed Description

template<int K, int P>
class adore::fun::DecoupledLFLCPlanner< K, P >

Plans trajectories in a road relative coordinate system in 3 steps, using qpOASES. In step 1 the longitudinal motion of a point mass along the road coordinate s, the progress is optimized. In step 2 the lateral motion of a point mass is optimized. In step 3 the detailed vehicle dynamics is recovered by solving an initial value problem for the zero dynamics of the vehile model. Template parameter K defines number of time steps considered during planning, K*P is an increased number of time steps gained by interpolation. The optimization problems in step 1 and 2 are formulated as linear-quadratic with box constraints for integrator chains with input at the third derivative. All constraints and references for the optimization problems have to be externally supplied via the NominalPlannerInformationSet interface.

Member Typedef Documentation

◆ TInformationSet

template<int K, int P>
typedef NominalPlannerInformationSet<N+1,2> adore::fun::DecoupledLFLCPlanner< K, P >::TInformationSet

◆ TOffsetSolver

template<int K, int P>
typedef adore::mad::LQ_OC_single_shooting<N,R,K,P> adore::fun::DecoupledLFLCPlanner< K, P >::TOffsetSolver

◆ TProgressSolver

template<int K, int P>
typedef adore::mad::LQ_OC_single_shooting<N,R,K,P> adore::fun::DecoupledLFLCPlanner< K, P >::TProgressSolver

Constructor & Destructor Documentation

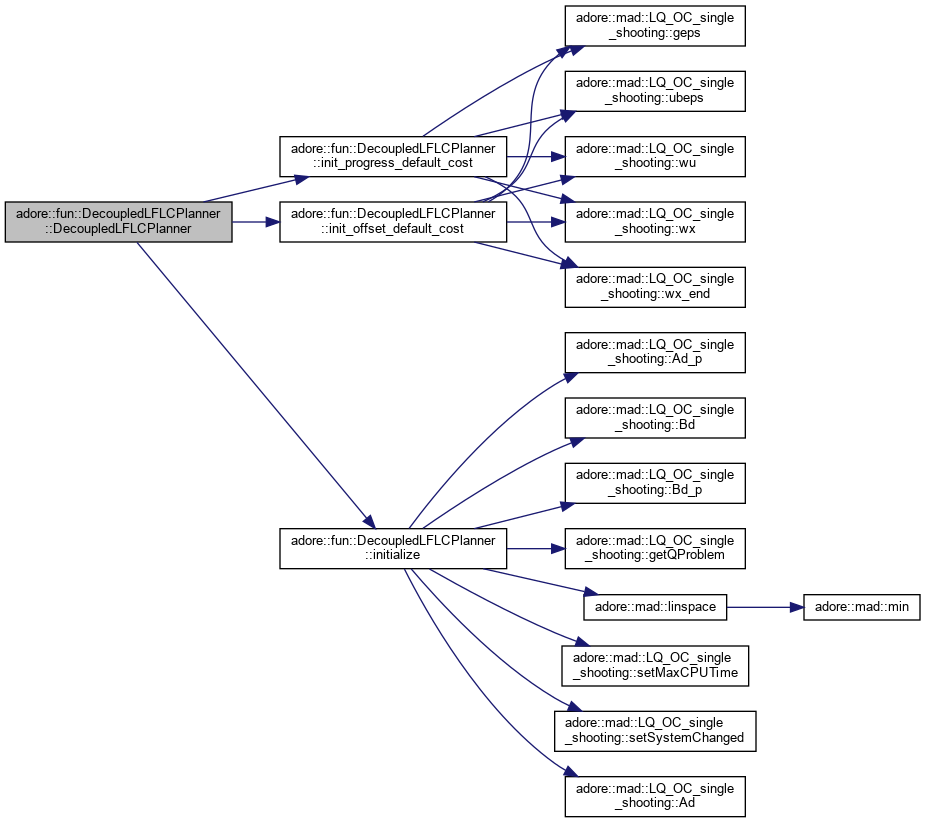

◆ DecoupledLFLCPlanner()

template<int K, int P>
adore::fun::DecoupledLFLCPlanner< K, P >::DecoupledLFLCPlanner ( adore::view::ALane *  lfv,
adore::params::APLongitudinalPlanner *  aplon,
adore::params::APLateralPlanner *  aplat,
adore::params::APVehicle *  apvehicle,
adore::params::APTrajectoryGeneration *  aptrajectory
)
inline
Here is the call graph for this function:

Member Function Documentation

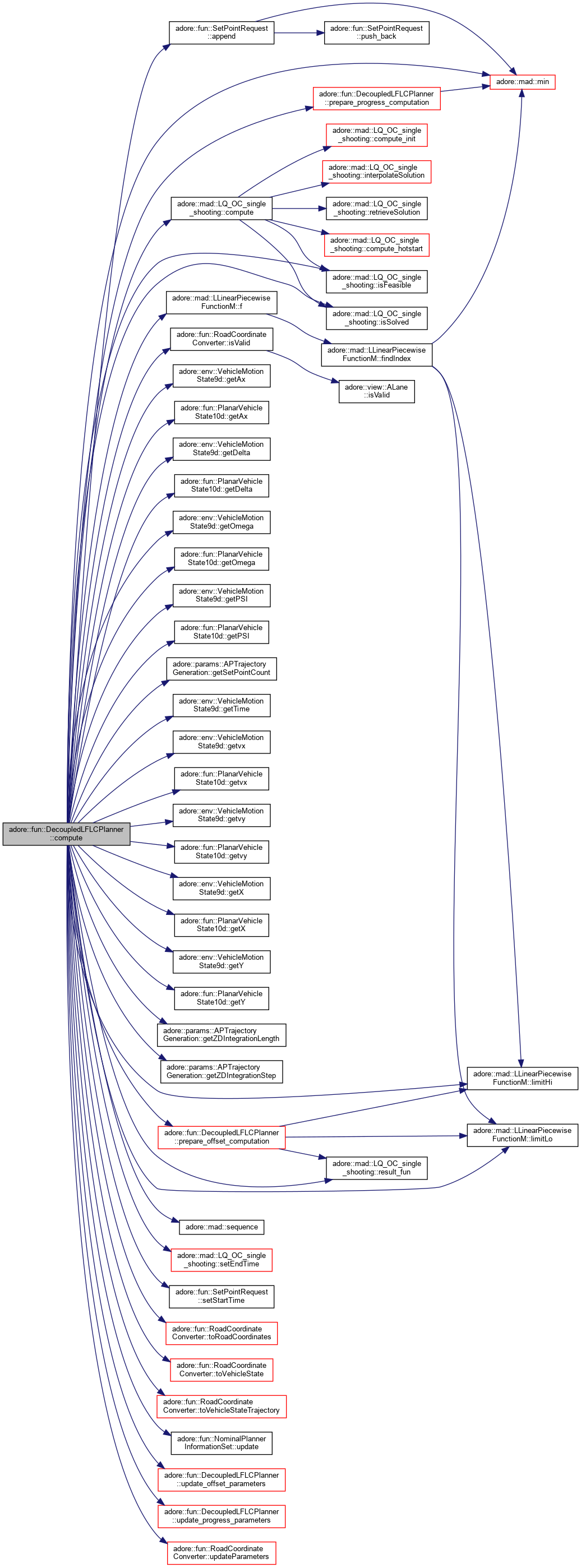

◆ compute()

template<int K, int P>
virtual void adore::fun::DecoupledLFLCPlanner< K, P >::compute ( const VehicleMotionState9d &  initial_state)
inlineoverridevirtual

compute - try to compute a trajectory according to given constraints and objective

Implements adore::fun::ANominalPlanner.

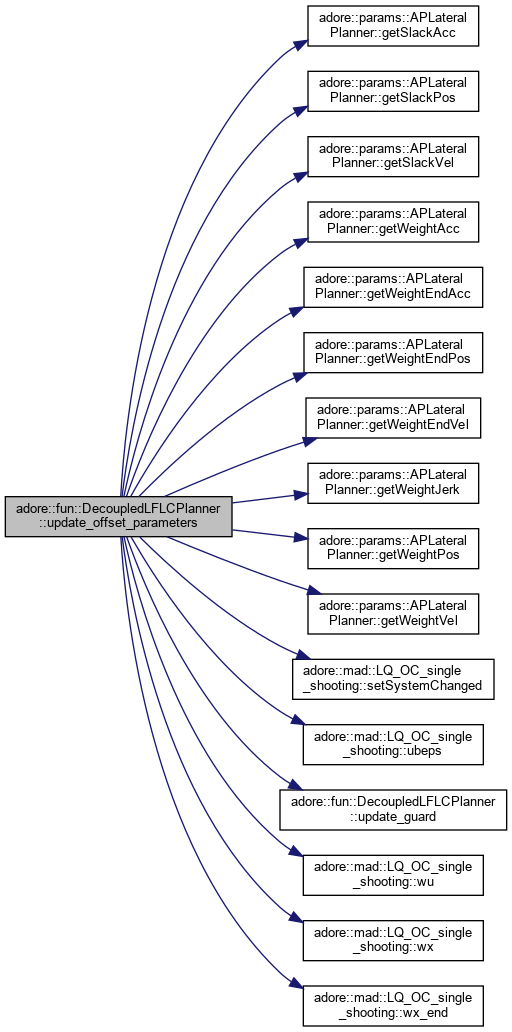

Here is the call graph for this function:

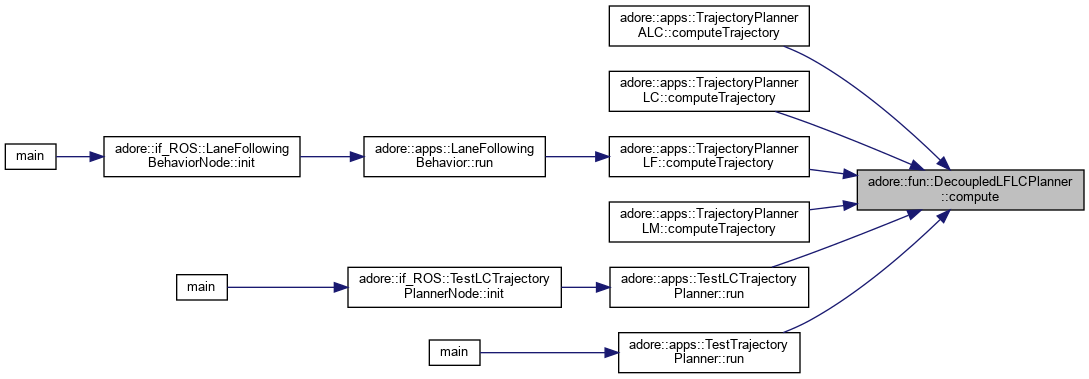

Here is the caller graph for this function:

◆ getCPUTime()

template<int K, int P>
virtual double adore::fun::DecoupledLFLCPlanner< K, P >::getCPUTime ( ) const
inlineoverridevirtual

getCPUTime - return the time require for trajectory planning in seconds

Implements adore::fun::ANominalPlanner.

◆ getInformationSet()

template<int K, int P>
TInformationSet& adore::fun::DecoupledLFLCPlanner< K, P >::getInformationSet ( )
inline

◆ getOffsetSolver()

template<int K, int P>
TOffsetSolver& adore::fun::DecoupledLFLCPlanner< K, P >::getOffsetSolver ( )
inline

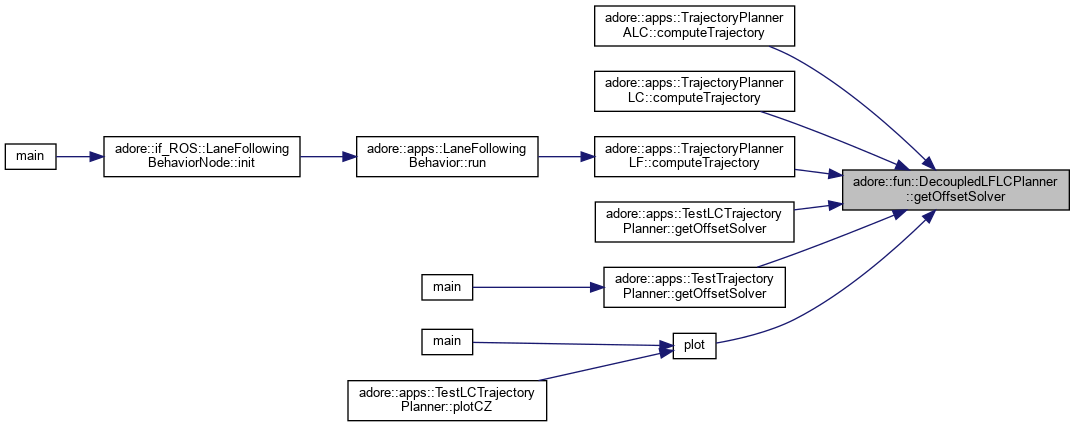

Here is the caller graph for this function:

◆ getPlanningHorizon()

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::getPlanningHorizon ( ) const
inline

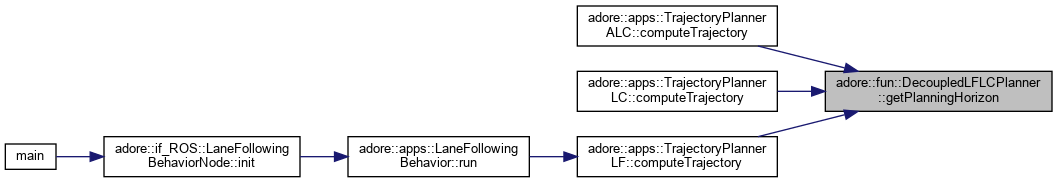

Here is the caller graph for this function:

◆ getProgressSolver()

template<int K, int P>
TProgressSolver& adore::fun::DecoupledLFLCPlanner< K, P >::getProgressSolver ( )
inline
Here is the caller graph for this function:

◆ getRoadCoordinateConverter()

template<int K, int P>
RoadCoordinateConverter& adore::fun::DecoupledLFLCPlanner< K, P >::getRoadCoordinateConverter ( )
inline

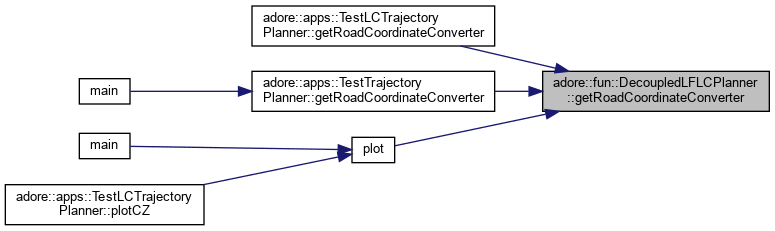

Here is the caller graph for this function:

◆ getSetPointRequest()

template<int K, int P>
virtual const SetPointRequest* adore::fun::DecoupledLFLCPlanner< K, P >::getSetPointRequest ( ) const
inlineoverridevirtual

getSetPointRequest - return computed trajectory in the form of a SetPointRequest

Implements adore::fun::ANominalPlanner.

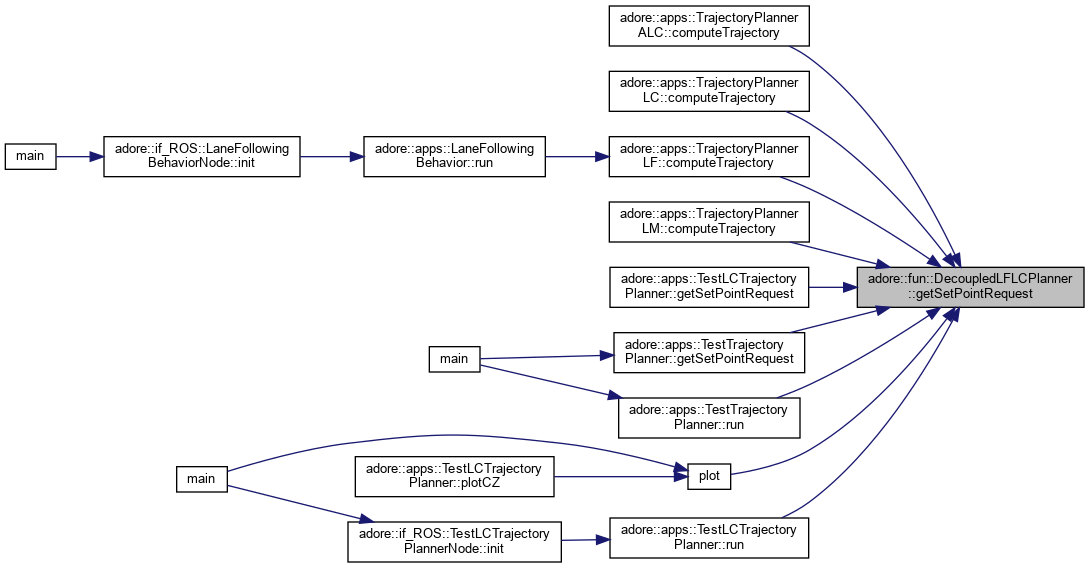

Here is the caller graph for this function:

◆ getStatus()

template<int K, int P>
std::string adore::fun::DecoupledLFLCPlanner< K, P >::getStatus ( )
inline

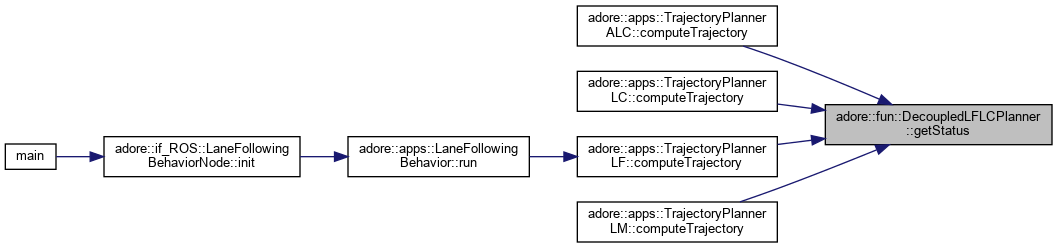

Here is the caller graph for this function:

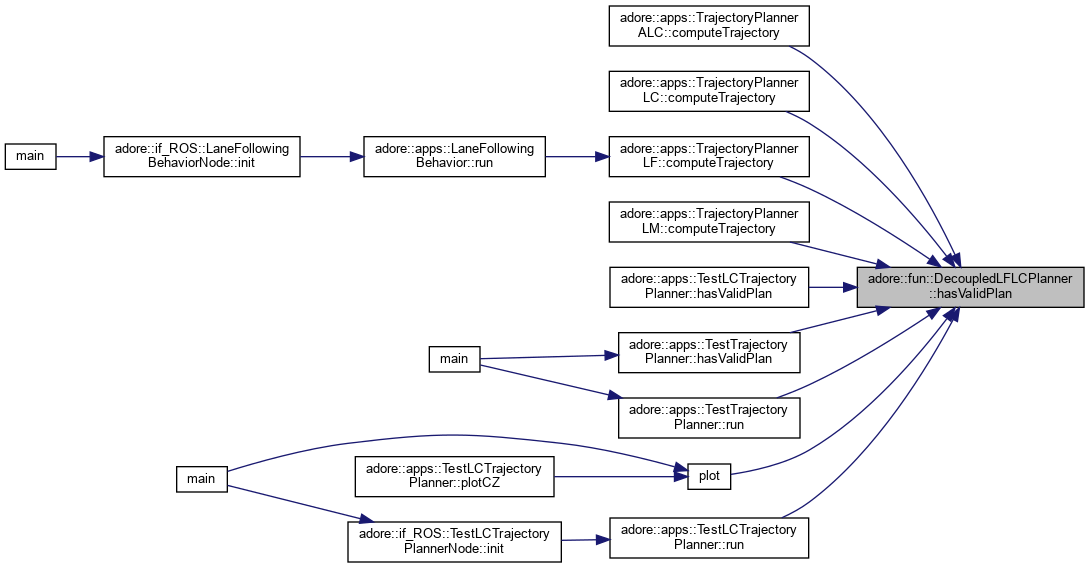

◆ hasValidPlan()

template<int K, int P>
virtual bool adore::fun::DecoupledLFLCPlanner< K, P >::hasValidPlan ( ) const
inlineoverridevirtual

hasValidPlan - return true, if a trajectory was computed, which satisfies given constraints

Implements adore::fun::ANominalPlanner.

Here is the caller graph for this function:

◆ init_offset_default_cost()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::init_offset_default_cost ( )
inlineprivate

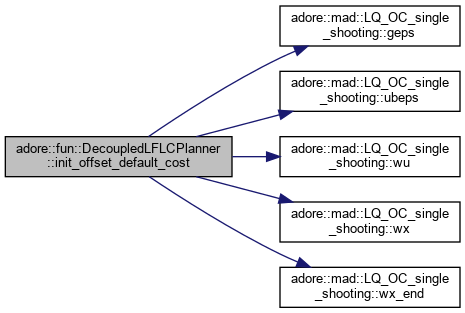

Here is the call graph for this function:
Here is the caller graph for this function:

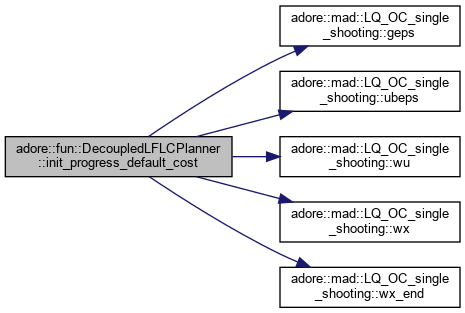

◆ init_progress_default_cost()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::init_progress_default_cost ( )
inlineprivate
Here is the call graph for this function:
Here is the caller graph for this function:

◆ initialize()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::initialize ( double  Tend)
inlineprivate
Here is the call graph for this function:

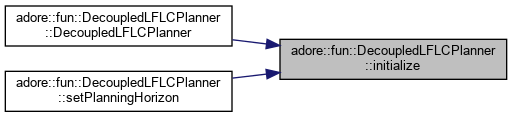

Here is the caller graph for this function:

◆ prepare_offset_computation()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::prepare_offset_computation ( )
inlineprivate

prepare_offset_computation - sets up the constraints for the lateral optimization problem

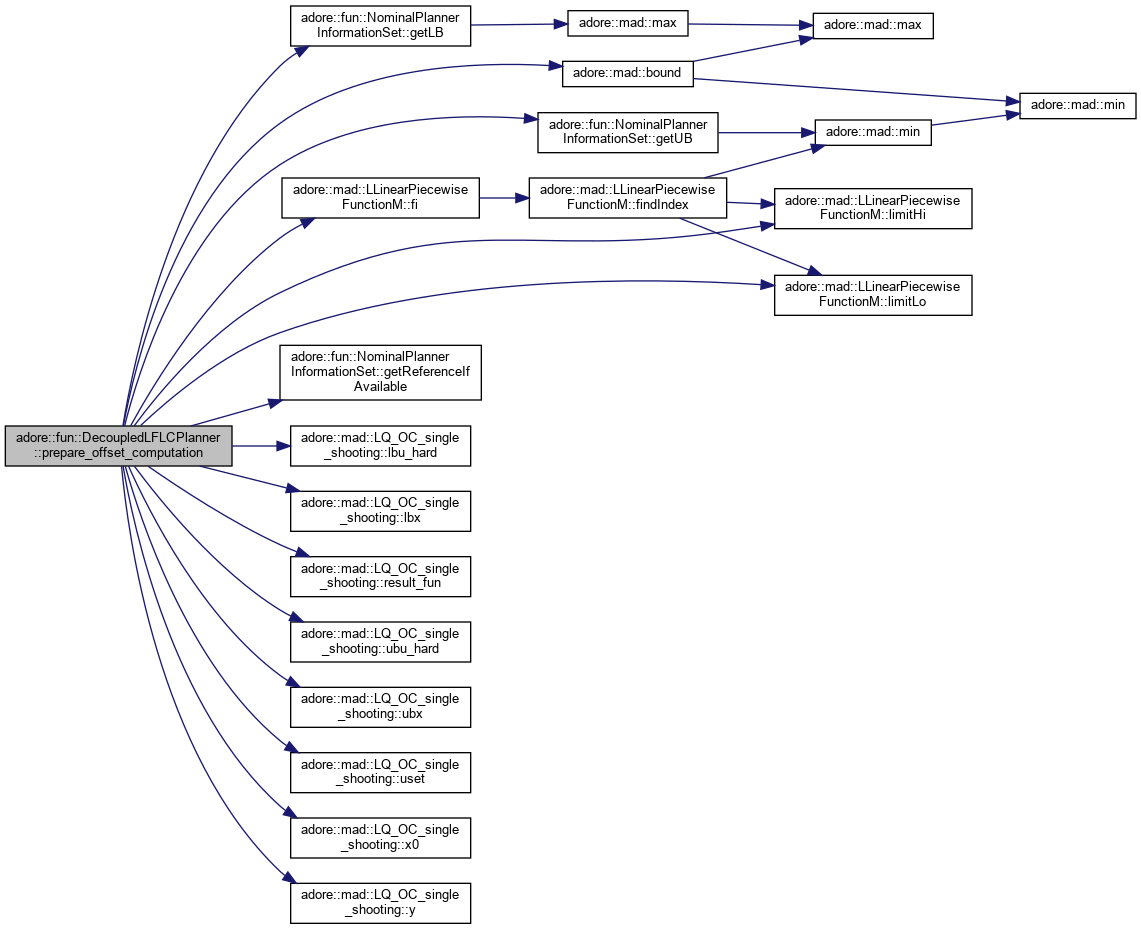

Here is the call graph for this function:
Here is the caller graph for this function:

◆ prepare_progress_computation()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::prepare_progress_computation ( )
inlineprivate

prepare_progress_computation - sets up the constraints for the longitudinal optimization problem

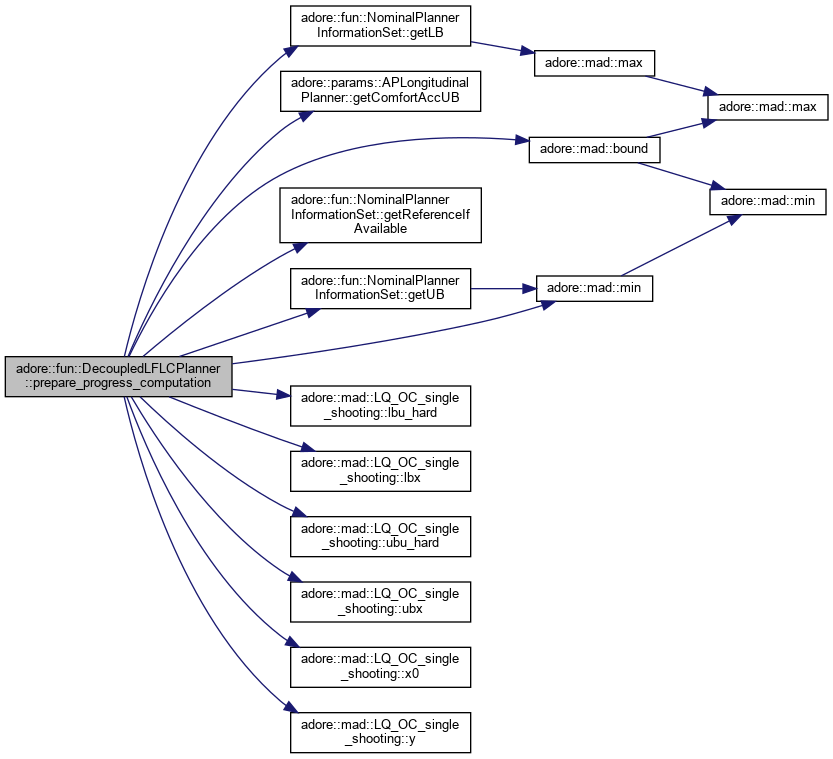

Here is the call graph for this function:

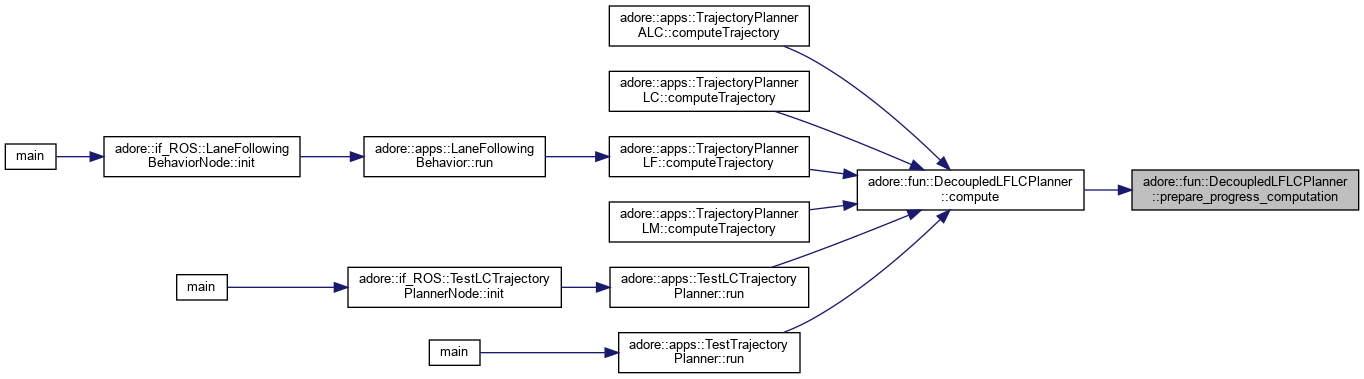

Here is the caller graph for this function:

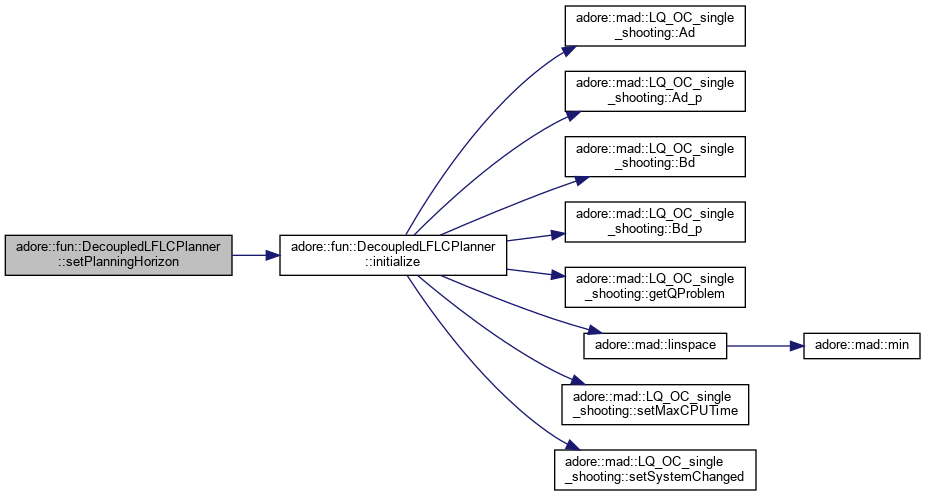

◆ setPlanningHorizon()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::setPlanningHorizon ( double  Tend)
inline
Here is the call graph for this function:

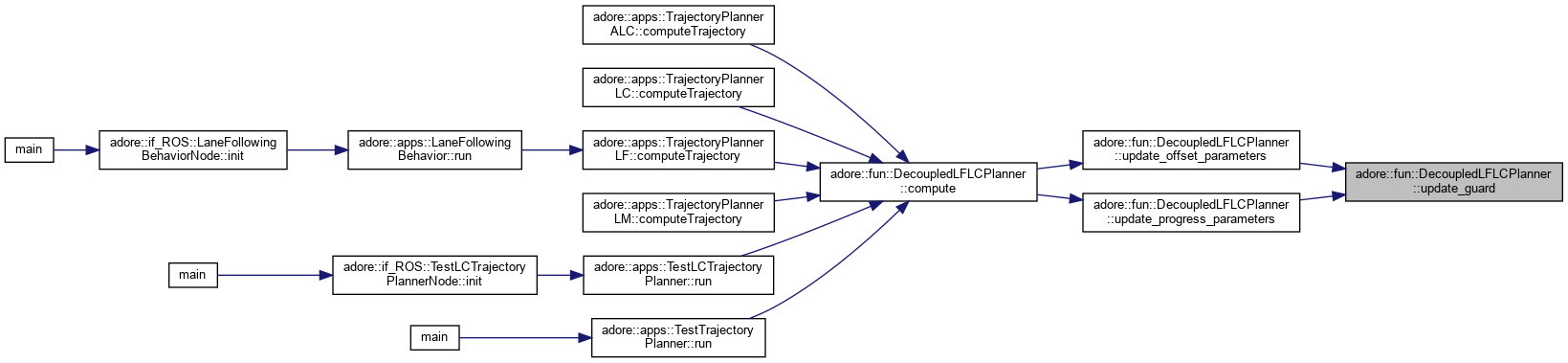

◆ update_guard()

template<int K, int P>
bool adore::fun::DecoupledLFLCPlanner< K, P >::update_guard ( double &  target,
double  value
)
inlineprivate
Here is the caller graph for this function:

◆ update_offset_parameters()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::update_offset_parameters ( )
inlineprivate
Here is the call graph for this function:
Here is the caller graph for this function:

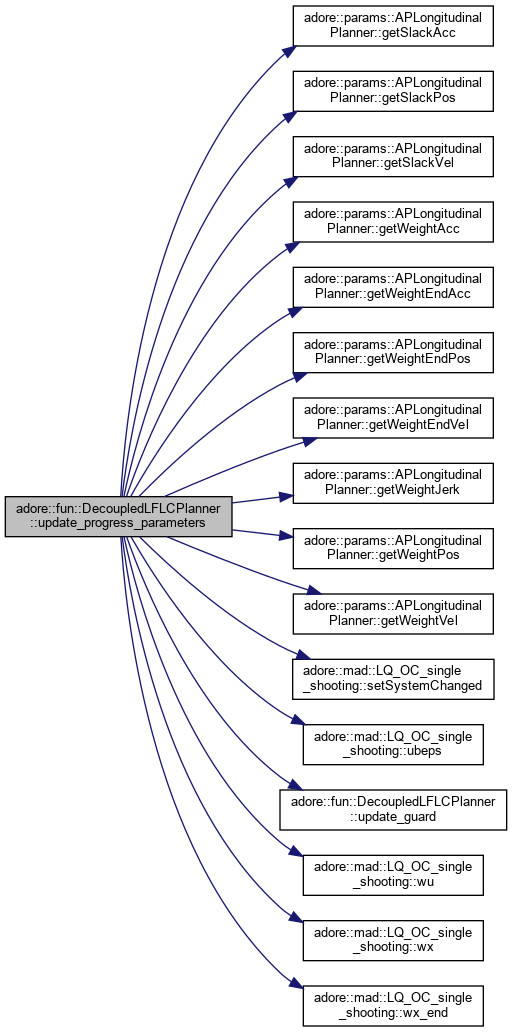

◆ update_progress_parameters()

template<int K, int P>
void adore::fun::DecoupledLFLCPlanner< K, P >::update_progress_parameters ( )
inlineprivate
Here is the call graph for this function:
Here is the caller graph for this function:

Member Data Documentation

◆ aplat_

template<int K, int P>
adore::params::APLateralPlanner* adore::fun::DecoupledLFLCPlanner< K, P >::aplat_
private

◆ aplon_

template<int K, int P>
adore::params::APLongitudinalPlanner* adore::fun::DecoupledLFLCPlanner< K, P >::aplon_
private

◆ aptraj_

template<int K, int P>
adore::params::APTrajectoryGeneration* adore::fun::DecoupledLFLCPlanner< K, P >::aptraj_
private

◆ apvehicle_

template<int K, int P>
adore::params::APVehicle* adore::fun::DecoupledLFLCPlanner< K, P >::apvehicle_
private

◆ ddn0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::ddn0
private

◆ dds0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::dds0
private

◆ dn0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::dn0
private

◆ ds0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::ds0
private

◆ info_

template<int K, int P>
TInformationSet adore::fun::DecoupledLFLCPlanner< K, P >::info_
protected

◆ N

template<int K, int P>
const int adore::fun::DecoupledLFLCPlanner< K, P >::N = 3
static

◆ n0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::n0
private

◆ offset_solver_

template<int K, int P>
TOffsetSolver adore::fun::DecoupledLFLCPlanner< K, P >::offset_solver_
private

◆ omega0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::omega0
private

◆ progress_solver_

template<int K, int P>
TProgressSolver adore::fun::DecoupledLFLCPlanner< K, P >::progress_solver_
private

◆ psi0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::psi0
private

◆ R

template<int K, int P>
const int adore::fun::DecoupledLFLCPlanner< K, P >::R = 1
static

◆ roadCoordinates_

template<int K, int P>
RoadCoordinateConverter adore::fun::DecoupledLFLCPlanner< K, P >::roadCoordinates_
private

end time of plan, defines planning horizon as [0,T_end_]

◆ s0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::s0
private

◆ spr_

template<int K, int P>
SetPointRequest adore::fun::DecoupledLFLCPlanner< K, P >::spr_
private

◆ step_

template<int K, int P>
int adore::fun::DecoupledLFLCPlanner< K, P >::step_
private

◆ t0

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::t0
private

◆ T_

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::T_[K+1]
private

◆ T_end_

template<int K, int P>
double adore::fun::DecoupledLFLCPlanner< K, P >::T_end_
private

time steps, incl. 0 at 0

◆ valid_

template<int K, int P>
bool adore::fun::DecoupledLFLCPlanner< K, P >::valid_
private

the result as a set-point request
