adore::mad::LHeading< T > Class Template Reference

#include <heading.h>

Inheritance diagram for adore::mad::LHeading< T >:

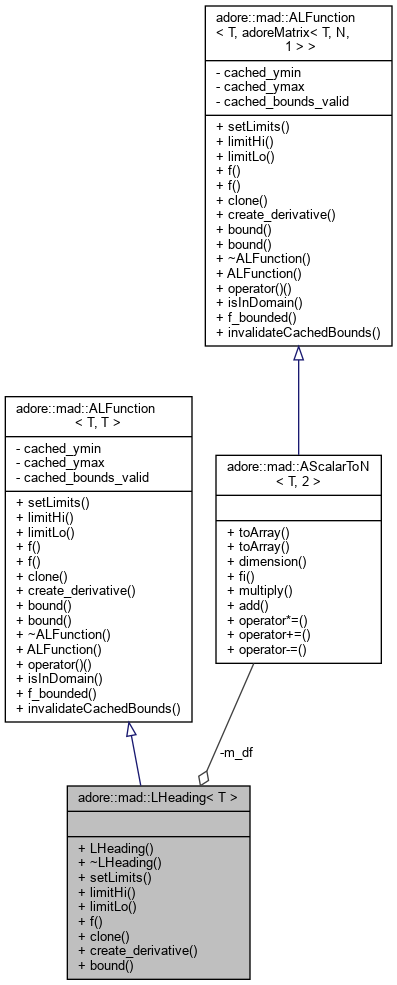

Collaboration diagram for adore::mad::LHeading< T >:

Public Types
typedef adoreMatrix< T, 2, 1 >	CTDF
typedef T	DT
typedef T	CT

Public Member Functions
	LHeading (AScalarToN< T, 2 > *df)
virtual	~LHeading ()
virtual void	setLimits (DT lo, DT hi) override
virtual DT	limitHi () const override
virtual DT	limitLo () const override
virtual CT	f (DT x) const override
virtual ALFunction< DT, CT > *	clone () override
virtual ALFunction< DT, CT > *	create_derivative () override
virtual void	bound (const DT &xmin, const DT &xmax, CT &ymin, CT &ymax)
Public Member Functions inherited from adore::mad::ALFunction< T, T >
virtual void	f (T *xvec, T *yvec, unsigned int count) const
void	bound (T &ymin, T &ymax)
virtual	~ALFunction ()
	ALFunction ()
const T	operator() (T x) const
bool	isInDomain (T x)
T	f_bounded (T x)
void	invalidateCachedBounds ()

Private Attributes
AScalarToN< T, 2 > *	m_df

Detailed Description

template<typename T>
class adore::mad::LHeading< T >

provides heading for dimensions 0,1 of a function

Member Typedef Documentation

CT

template<typename T >

typedef T adore::mad::LHeading< T >::CT

CTDF

template<typename T >

typedef adoreMatrix<T, 2, 1> adore::mad::LHeading< T >::CTDF

DT

template<typename T >

typedef T adore::mad::LHeading< T >::DT

Constructor & Destructor Documentation

LHeading()

template<typename T >

adore::mad::LHeading< T >::LHeading ( AScalarToN< T, 2 > *  df )

inline

~LHeading()

template<typename T >

virtual adore::mad::LHeading< T >::~LHeading ( )

inlinevirtual

Member Function Documentation

bound()

template<typename T >

virtual void adore::mad::LHeading< T >::bound ( const DT &  xmin, const DT &  xmax, CT &  ymin, CT &  ymax  )

inlinevirtual

bound function values in the x-range defined by the hypercube between corner points lower left xmin and upper right xmax

Implements adore::mad::ALFunction< T, T >.

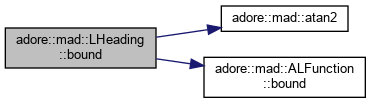

Here is the call graph for this function:

clone()

template<typename T >

virtual ALFunction<DT, CT>* adore::mad::LHeading< T >::clone ( )

inlineoverridevirtual

create a copy of child class object - is used for function operations

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

create_derivative()

template<typename T >

virtual ALFunction<DT, CT>* adore::mad::LHeading< T >::create_derivative ( )

inlineoverridevirtual

creates a function providing the derivative of the heading

Implements adore::mad::ALFunction< T, T >.

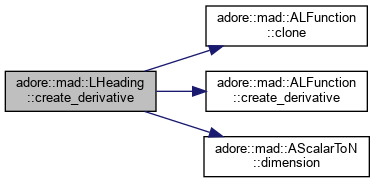

Here is the call graph for this function:

f()

template<typename T >

virtual CT adore::mad::LHeading< T >::f ( DT  x ) const

inlineoverridevirtual

function evaluation returns y of codomain type CT for a value x of domain type DT

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

limitHi()

template<typename T >

virtual DT adore::mad::LHeading< T >::limitHi ( ) const

inlineoverridevirtual

query upper limit of the domain

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

limitLo()

template<typename T >

virtual DT adore::mad::LHeading< T >::limitLo ( ) const

inlineoverridevirtual

lower limit of the domain

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

setLimits()

template<typename T >

virtual void adore::mad::LHeading< T >::setLimits ( DT  lo, DT  hi  )

inlineoverridevirtual

reduce or increase the limit of the function, without changing y

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

Member Data Documentation

m_df

template<typename T >

AScalarToN<T, 2>* adore::mad::LHeading< T >::m_df

private

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/heading.h
