adore::mad::AScalarToN< T, N > Class Template Referenceabstract

#include <alfunction.h>

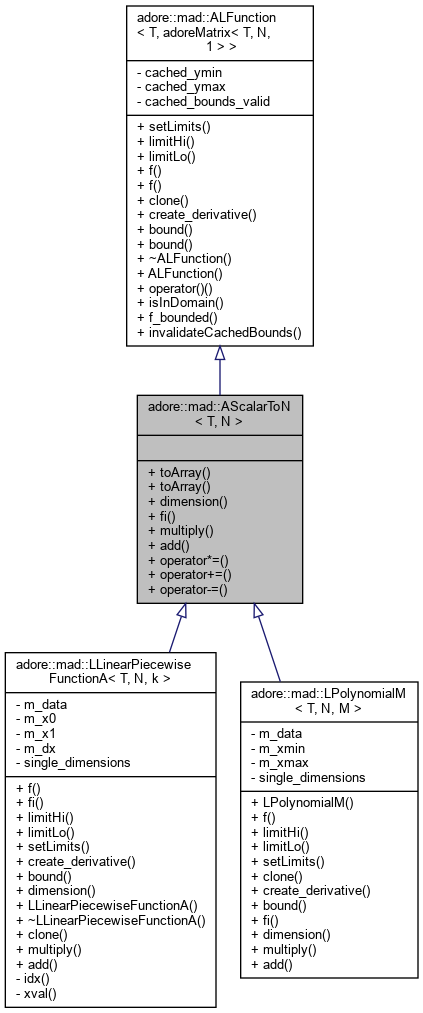

Inheritance diagram for adore::mad::AScalarToN< T, N >:
Inheritance graph

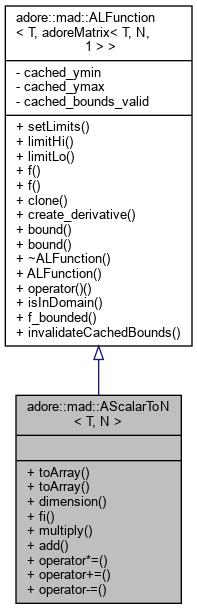

Collaboration diagram for adore::mad::AScalarToN< T, N >:
Collaboration graph

Public Types

typedef T DT

typedef adoreMatrix< T, N, 1 > CT

typedef ALFunction< DT, T > SUBFUN


Public Member Functions

void toArray (DT *xvec, T *yvec, unsigned int count)

void toArray (DT *xvec, T *yvec, unsigned int count, unsigned int row)

virtual SUBFUN * dimension (int i)=0

virtual T fi (DT x, int dim) const =0

virtual void multiply (adoreMatrix< T, 0, 0 > A, int rowi, int rowj)=0

virtual void add (adoreMatrix< T, 0, 1 > b, int rowi, int rowj)=0

virtual void operator*= (adoreMatrix< T, N, N > A)

virtual void operator+= (adoreMatrix< T, N, 1 > b)

virtual void operator-= (adoreMatrix< T, N, 1 > b)

- Public Member Functions inherited from adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >
virtual void setLimits (T lo, T hi)=0

virtual T limitHi () const=0

virtual T limitLo () const=0

virtual adoreMatrix< T, N, 1 > f (T x) const=0

virtual void f (T *xvec, adoreMatrix< T, N, 1 > *yvec, unsigned int count) const

virtual ALFunction< T, adoreMatrix< T, N, 1 > > * clone ()=0

virtual ALFunction< T, adoreMatrix< T, N, 1 > > * create_derivative ()=0

virtual void bound (const T &xmin, const T &xmax, adoreMatrix< T, N, 1 > &ymin, adoreMatrix< T, N, 1 > &ymax)=0

void bound (adoreMatrix< T, N, 1 > &ymin, adoreMatrix< T, N, 1 > &ymax)

virtual ~ALFunction ()

 ALFunction ()

const adoreMatrix< T, N, 1 > operator() (T x) const

bool isInDomain (T x)

adoreMatrix< T, N, 1 > f_bounded (T x)

void invalidateCachedBounds ()


Detailed Description

template<typename T, int N>
class adore::mad::AScalarToN< T, N >

An abstract function mapping from a scalar domain to a vector codomain, f:T->T^N

Member Typedef Documentation

◆ CT

template<typename T , int N>
typedef adoreMatrix<T, N, 1> adore::mad::AScalarToN< T, N >::CT

◆ DT

template<typename T , int N>
typedef T adore::mad::AScalarToN< T, N >::DT

◆ SUBFUN

template<typename T , int N>
typedef ALFunction<DT, T> adore::mad::AScalarToN< T, N >::SUBFUN

Member Function Documentation

◆ add()

template<typename T , int N>
virtual void adore::mad::AScalarToN< T, N >::add ( adoreMatrix< T, 0, 1 >  b,
int  rowi,
int  rowj
)
pure virtual

apply operation to function subdimensions: add a vector to rowi to rowj

Implemented in adore::mad::FunctionCombination_StackScalar< T >, adore::mad::LPolynomialM< T, N, M >, adore::mad::LLinearPiecewiseFunctionM< T, n >, adore::mad::LLinearPiecewiseFunctionM< T, 3+M+1 >, adore::mad::LSpiralFunction< T, M >, adore::mad::LLinearPiecewiseFunctionA< T, N, k >, adore::mad::LLinearPiecewiseFunctionM< double, 1 >, adore::mad::LLinearPiecewiseFunctionM< double, N+R >, adore::mad::LLinearPiecewiseFunctionM< double, 4 >, adore::mad::LLinearPiecewiseFunctionM< double, 3 >, and adore::mad::LLinearPiecewiseFunctionM< double, 2 >.

Here is the caller graph for this function:

◆ dimension()

template<typename T , int N>
virtual SUBFUN* adore::mad::AScalarToN< T, N >::dimension ( int  i)
pure virtual

gives access to a scalar sub-function. does not create a new object, so use clone() to get your own instance of the subfunction.

Implemented in adore::mad::LSpiralFunction< T, M >, adore::mad::LPolynomialM< T, N, M >, adore::mad::LLinearPiecewiseFunctionA< T, N, k >, adore::mad::LLinearPiecewiseFunctionM< T, n >, adore::mad::LLinearPiecewiseFunctionM< T, 3+M+1 >, adore::mad::LLinearPiecewiseFunctionM< double, 1 >, adore::mad::LLinearPiecewiseFunctionM< double, N+R >, adore::mad::LLinearPiecewiseFunctionM< double, 4 >, adore::mad::LLinearPiecewiseFunctionM< double, 3 >, adore::mad::LLinearPiecewiseFunctionM< double, 2 >, and adore::mad::FunctionCombination_StackScalar< T >.

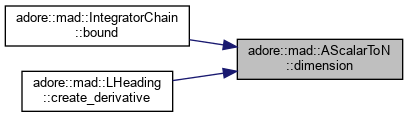

Here is the caller graph for this function:

◆ fi()

template<typename T , int N>
virtual T adore::mad::AScalarToN< T, N >::fi ( DT  x,
int  dim
) const
pure virtual

scalar evaluation of function: for y-component dim

Implemented in adore::mad::LPolynomialM< T, N, M >, adore::mad::FunctionCombination_StackScalar< T >, adore::mad::LSpiralFunction< T, M >, adore::mad::LLinearPiecewiseFunctionM< T, 3+M+1 >, adore::mad::LLinearPiecewiseFunctionM< double, 1 >, adore::mad::LLinearPiecewiseFunctionM< double, N+R >, adore::mad::LLinearPiecewiseFunctionM< double, 4 >, adore::mad::LLinearPiecewiseFunctionM< double, 3 >, adore::mad::LLinearPiecewiseFunctionM< double, 2 >, and adore::mad::LLinearPiecewiseFunctionA< T, N, k >.

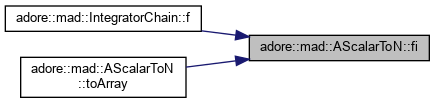

Here is the caller graph for this function:

◆ multiply()

template<typename T , int N>
virtual void adore::mad::AScalarToN< T, N >::multiply ( adoreMatrix< T, 0, 0 >  A,
int  rowi,
int  rowj
)
pure virtual

apply operation to function sub-dimensions: multiply with matrix of lower dimension in range rowi to rowj, with A.nc==A.nr==rowj-rowi+1

Implemented in adore::mad::LPolynomialM< T, N, M >, adore::mad::LLinearPiecewiseFunctionM< T, n >, adore::mad::LLinearPiecewiseFunctionM< T, 3+M+1 >, adore::mad::LSpiralFunction< T, M >, adore::mad::FunctionCombination_StackScalar< T >, adore::mad::LLinearPiecewiseFunctionA< T, N, k >, adore::mad::LLinearPiecewiseFunctionM< double, 1 >, adore::mad::LLinearPiecewiseFunctionM< double, N+R >, adore::mad::LLinearPiecewiseFunctionM< double, 4 >, adore::mad::LLinearPiecewiseFunctionM< double, 3 >, and adore::mad::LLinearPiecewiseFunctionM< double, 2 >.

Here is the caller graph for this function:

◆ operator*=()

template<typename T , int N>
virtual void adore::mad::AScalarToN< T, N >::operator*= ( adoreMatrix< T, N, N >  A)
inlinevirtual

short notations

Here is the call graph for this function:

◆ operator+=()

template<typename T , int N>
virtual void adore::mad::AScalarToN< T, N >::operator+= ( adoreMatrix< T, N, 1 >  b)
inlinevirtual
Here is the call graph for this function:

◆ operator-=()

template<typename T , int N>
virtual void adore::mad::AScalarToN< T, N >::operator-= ( adoreMatrix< T, N, 1 >  b)
inlinevirtual
Here is the call graph for this function:

◆ toArray() [1/2]

template<typename T , int N>
void adore::mad::AScalarToN< T, N >::toArray ( DT *  xvec,
T *  yvec,
unsigned int  count
)
inline

evaluate multi, yvec must have at least size sizeof(T[N*count]) ordering is y0(x[0]),y1(x[0]),y2(x[0]),...,yN(x[0]),y0(x[1]),...yN(x[1]),...,y0(x[count-1]),...,yN(x[count-1])

Here is the call graph for this function:

◆ toArray() [2/2]

template<typename T , int N>
void adore::mad::AScalarToN< T, N >::toArray ( DT *  xvec,
T *  yvec,
unsigned int  count,
unsigned int  row
)
inline
Here is the call graph for this function:
The documentation for this class was generated from the following file:
