adore::mad::FunctionCombination_StackScalar< T > Class Template Reference

#include <alfunction.h>

Inheritance diagram for adore::mad::FunctionCombination_StackScalar< T >:

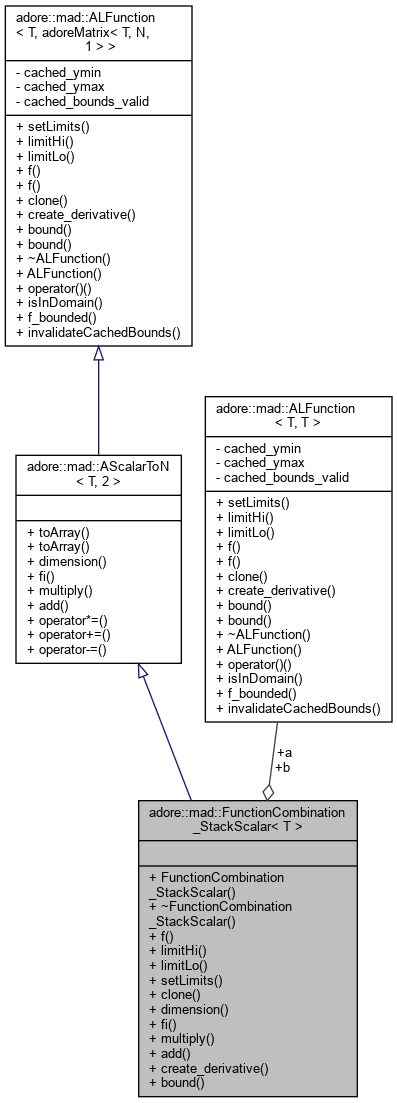

Collaboration diagram for adore::mad::FunctionCombination_StackScalar< T >:

Public Types
typedef AScalarToN< T, 2 >::DT	DT
typedef AScalarToN< T, 2 >::CT	CT
typedef ALFunction< T, T >	SUBFUN
Public Types inherited from adore::mad::AScalarToN< T, 2 >
typedef T	DT
typedef adoreMatrix< T, N, 1 >	CT
typedef ALFunction< DT, T >	SUBFUN

Public Member Functions
	FunctionCombination_StackScalar (ALFunction< T, T > *a, ALFunction< T, T > *b)
virtual	~FunctionCombination_StackScalar ()
virtual adoreMatrix< T, 2, 1 >	f (T x) const override
virtual DT	limitHi () const override
virtual DT	limitLo () const override
virtual void	setLimits (DT lo, DT hi) override
virtual ALFunction< DT, CT > *	clone () override
virtual SUBFUN *	dimension (int i) override
virtual T	fi (T x, int i) const override
virtual void	multiply (adoreMatrix< T, 0, 0 > A, int rowi, int rowj)
virtual void	add (adoreMatrix< T, 0, 1 > c, int rowi, int rowj)
virtual ALFunction< DT, CT > *	create_derivative () override
virtual void	bound (const T &xmin, const T &xmax, CT &ymin, CT &ymax) override
Public Member Functions inherited from adore::mad::AScalarToN< T, 2 >
void	toArray (DT *xvec, T *yvec, unsigned int count)
void	toArray (DT *xvec, T *yvec, unsigned int count, unsigned int row)
virtual void	operator*= (adoreMatrix< T, N, N > A)
virtual void	operator+= (adoreMatrix< T, N, 1 > b)
virtual void	operator-= (adoreMatrix< T, N, 1 > b)
Public Member Functions inherited from adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >
virtual void	setLimits (T lo, T hi)=0
virtual void	f (T *xvec, adoreMatrix< T, N, 1 > *yvec, unsigned int count) const
virtual void	bound (const T &xmin, const T &xmax, adoreMatrix< T, N, 1 > &ymin, adoreMatrix< T, N, 1 > &ymax)=0
void	bound (adoreMatrix< T, N, 1 > &ymin, adoreMatrix< T, N, 1 > &ymax)
virtual	~ALFunction ()
	ALFunction ()
const adoreMatrix< T, N, 1 >	operator() (T x) const
bool	isInDomain (T x)
adoreMatrix< T, N, 1 >	f_bounded (T x)
void	invalidateCachedBounds ()

Public Attributes
SUBFUN *	a
SUBFUN *	b

Detailed Description

template<typename T>
class adore::mad::FunctionCombination_StackScalar< T >

a helper class for combining two 1->N functions

Member Typedef Documentation

CT

template<typename T >

typedef AScalarToN<T,2>::CT adore::mad::FunctionCombination_StackScalar< T >::CT

DT

template<typename T >

typedef AScalarToN<T,2>::DT adore::mad::FunctionCombination_StackScalar< T >::DT

SUBFUN

template<typename T >

typedef ALFunction<T,T> adore::mad::FunctionCombination_StackScalar< T >::SUBFUN

Constructor & Destructor Documentation

FunctionCombination_StackScalar()

template<typename T >

adore::mad::FunctionCombination_StackScalar< T >::FunctionCombination_StackScalar ( ALFunction< T, T > *  a, ALFunction< T, T > *  b  )

inline

Here is the caller graph for this function:

~FunctionCombination_StackScalar()

template<typename T >

virtual adore::mad::FunctionCombination_StackScalar< T >::~FunctionCombination_StackScalar ( )

inlinevirtual

Member Function Documentation

add()

template<typename T >

virtual void adore::mad::FunctionCombination_StackScalar< T >::add ( adoreMatrix< T, 0, 1 >  b, int  rowi, int  rowj  )

inlinevirtual

apply operation to function subdimensions: add a vector to rowi to rowj

Implements adore::mad::AScalarToN< T, 2 >.

bound()

template<typename T >

virtual void adore::mad::FunctionCombination_StackScalar< T >::bound ( const T &  xmin, const T &  xmax, CT &  ymin, CT &  ymax  )

inlineoverridevirtual

Here is the call graph for this function:

clone()

template<typename T >

virtual ALFunction<DT, CT>* adore::mad::FunctionCombination_StackScalar< T >::clone ( )

inlineoverridevirtual

create a copy of child class object - is used for function operations

Implements adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >.

Here is the call graph for this function:

create_derivative()

template<typename T >

virtual ALFunction<DT, CT>* adore::mad::FunctionCombination_StackScalar< T >::create_derivative ( )

inlineoverridevirtual

create a new function object, which is the derivative function

Implements adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >.

Here is the call graph for this function:

dimension()

template<typename T >

virtual SUBFUN* adore::mad::FunctionCombination_StackScalar< T >::dimension ( int  i )

inlineoverridevirtual

gives access to a scalar sub-function. does not create a new object, so use clone() to get your own instance of the subfunction.

Implements adore::mad::AScalarToN< T, 2 >.

f()

template<typename T >

virtual adoreMatrix<T, 2, 1> adore::mad::FunctionCombination_StackScalar< T >::f ( T  x ) const

inlineoverridevirtual

function evaluation returns y of codomain type CT for a value x of domain type DT

Implements adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >.

Here is the call graph for this function:

fi()

template<typename T >

virtual T adore::mad::FunctionCombination_StackScalar< T >::fi ( T  x, int  dim  ) const

inlineoverridevirtual

scalar evaluation of function: for y-component dim

Implements adore::mad::AScalarToN< T, 2 >.

Here is the call graph for this function:

limitHi()

template<typename T >

virtual DT adore::mad::FunctionCombination_StackScalar< T >::limitHi ( ) const

inlineoverridevirtual

query upper limit of the domain

Implements adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >.

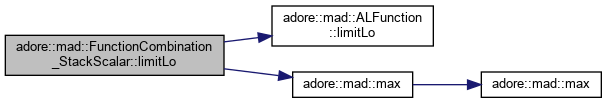

Here is the call graph for this function:

limitLo()

template<typename T >

virtual DT adore::mad::FunctionCombination_StackScalar< T >::limitLo ( ) const

inlineoverridevirtual

lower limit of the domain

Implements adore::mad::ALFunction< T, adoreMatrix< T, N, 1 > >.

Here is the call graph for this function:

multiply()

template<typename T >

virtual void adore::mad::FunctionCombination_StackScalar< T >::multiply ( adoreMatrix< T, 0, 0 >  A, int  rowi, int  rowj  )

inlinevirtual

apply operation to function sub-dimensions: multiply with matrix of lower dimension in range rowi to rowj, with A.nc==A.nr==rowj-rowi+1

Implements adore::mad::AScalarToN< T, 2 >.

setLimits()

template<typename T >

virtual void adore::mad::FunctionCombination_StackScalar< T >::setLimits ( DT  lo, DT  hi  )

inlineoverridevirtual

Here is the call graph for this function:

Member Data Documentation

a

template<typename T >

SUBFUN* adore::mad::FunctionCombination_StackScalar< T >::a

b

template<typename T >

SUBFUN* adore::mad::FunctionCombination_StackScalar< T >::b

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/alfunction.h
