adore::mad::IntegratorChain< T, depth > Class Template Reference

#include <integratorchain.h>

Inheritance diagram for adore::mad::IntegratorChain< T, depth >:

Collaboration diagram for adore::mad::IntegratorChain< T, depth >:

Public Member Functions
	IntegratorChain (AScalarToN< T, depth > *data, int level)
	~IntegratorChain ()
virtual CT	f (DT x) const override
virtual DT	limitHi () const override
virtual DT	limitLo () const override
virtual void	invertDirection () override
virtual void	setLimits (DT lo, DT hi) override
virtual ALFunction< DT, CT > *	clone () override
virtual ALFunction< DT, CT > *	create_derivative () override
virtual void	bound (const DT &xmin, const DT &xmax, CT &ymin, CT &ymax) override
Public Member Functions inherited from adore::mad::ALFunction< T, T >
virtual void	f (T *xvec, T *yvec, unsigned int count) const
void	bound (T &ymin, T &ymax)
virtual	~ALFunction ()
	ALFunction ()
const T	operator() (T x) const
bool	isInDomain (T x)
T	f_bounded (T x)
void	invalidateCachedBounds ()

Private Types
typedef T	DT
typedef T	CT

Private Attributes
int	m_level
AScalarToN< T, depth > *	m_data

Detailed Description

template<typename T, int depth>
class adore::mad::IntegratorChain< T, depth >

A function which stacks derivatives in the codomain vector. IntegratorChain assumes that a given function represents derivatives in its different dimensions, e.g. m_data->fi(x,1) = d/dx m_data->fi(x,0) m_data->fi(x,2) = d^2/dx^2 m_data->fi(x,0) m_data->fi(x,3) = d^3/dx^3 m_data->fi(x,0) ...

Member Typedef Documentation

CT

template<typename T , int depth>

typedef T adore::mad::IntegratorChain< T, depth >::CT

private

DT

template<typename T , int depth>

typedef T adore::mad::IntegratorChain< T, depth >::DT

private

Constructor & Destructor Documentation

IntegratorChain()

template<typename T , int depth>

adore::mad::IntegratorChain< T, depth >::IntegratorChain ( AScalarToN< T, depth > *  data, int  level  )

inline

Here is the caller graph for this function:

~IntegratorChain()

template<typename T , int depth>

adore::mad::IntegratorChain< T, depth >::~IntegratorChain ( )

inline

Member Function Documentation

bound()

template<typename T , int depth>

virtual void adore::mad::IntegratorChain< T, depth >::bound ( const DT &  xmin, const DT &  xmax, CT &  ymin, CT &  ymax  )

inlineoverridevirtual

bound function values in the x-range defined by the hypercube between corner points lower left xmin and upper right xmax

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

clone()

template<typename T , int depth>

virtual ALFunction<DT, CT>* adore::mad::IntegratorChain< T, depth >::clone ( )

inlineoverridevirtual

create a copy of child class object - is used for function operations

Implements adore::mad::ALFunction< T, T >.

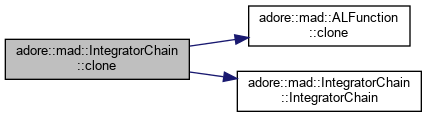

Here is the call graph for this function:

create_derivative()

template<typename T , int depth>

virtual ALFunction<DT, CT>* adore::mad::IntegratorChain< T, depth >::create_derivative ( )

inlineoverridevirtual

create a new function object, which is the derivative function

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

f()

template<typename T , int depth>

virtual CT adore::mad::IntegratorChain< T, depth >::f ( DT  x ) const

inlineoverridevirtual

function evaluation returns y of codomain type CT for a value x of domain type DT

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

invertDirection()

template<typename T , int depth>

virtual void adore::mad::IntegratorChain< T, depth >::invertDirection ( )

inlineoverridevirtual

limitHi()

template<typename T , int depth>

virtual DT adore::mad::IntegratorChain< T, depth >::limitHi ( ) const

inlineoverridevirtual

query upper limit of the domain

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

limitLo()

template<typename T , int depth>

virtual DT adore::mad::IntegratorChain< T, depth >::limitLo ( ) const

inlineoverridevirtual

lower limit of the domain

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

setLimits()

template<typename T , int depth>

virtual void adore::mad::IntegratorChain< T, depth >::setLimits ( DT  lo, DT  hi  )

inlineoverridevirtual

reduce or increase the limit of the function, without changing y

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

Member Data Documentation

m_data

template<typename T , int depth>

AScalarToN<T, depth>* adore::mad::IntegratorChain< T, depth >::m_data

private

m_level

template<typename T , int depth>

int adore::mad::IntegratorChain< T, depth >::m_level

private

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/integratorchain.h
