adore::env::LocalBoxSet< TObject, TBoxGen, TComparator > Class Template Reference

#include <localboxset.h>

Collaboration diagram for adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >:

Classes
struct	EqualFunctor
struct	itpair

Public Types
typedef boost::geometry::model::point< double, 3, boost::geometry::cs::cartesian >	Tboost_point
typedef boost::geometry::model::box< Tboost_point >	Tboost_box
typedef std::pair< Tboost_box, TObject * >	TBoxPointerPair
typedef boost::geometry::index::rtree< TBoxPointerPair, boost::geometry::index::quadratic< 16 >, boost::geometry::index::indexable< TBoxPointerPair >, EqualFunctor >	Trtree
typedef Trtree::const_query_iterator	Trtreeit

Public Member Functions
void	insert (const TObject &object)
TObject *	find (const TObject &object)
bool	contains (const TObject &object)
void	remove (TObject *object)
int	size () const
itpair	getObjectsInRegion (double x0, double y0, double x1, double y1)
itpair	getObjectsOutsideRegion (double x0, double y0, double x1, double y1)
void	refocus (double x0, double y0, double x1, double y1)

Private Attributes
Trtree	data_
TBoxGen	boxgen_
TComparator	compare_

Detailed Description

template<typename TObject, typename TBoxGen, typename TComparator>
class adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >

LocalBoxSet aggregates a set of objects representable by bounding boxes. TObject: type of collected objects TBoxGen: generates box-shaped impact region for objects TComparator: compares objects for equality On insertion, the existance of a similar object is checked: This container allows no duplicates according to TComparator. If objects are identified with a certain tolerance, the TBoxGen class has to use the same tolerance in box generation, in order to find duplicates in insert or find or contains.

Member Typedef Documentation

Tboost_box

template<typename TObject , typename TBoxGen , typename TComparator >

typedef boost::geometry::model::box<Tboost_point> adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::Tboost_box

Tboost_point

template<typename TObject , typename TBoxGen , typename TComparator >

typedef boost::geometry::model::point<double,3,boost::geometry::cs::cartesian> adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::Tboost_point

TBoxPointerPair

template<typename TObject , typename TBoxGen , typename TComparator >

typedef std::pair<Tboost_box,TObject*> adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::TBoxPointerPair

Trtree

template<typename TObject , typename TBoxGen , typename TComparator >

typedef boost::geometry::index::rtree< TBoxPointerPair, boost::geometry::index::quadratic<16>, boost::geometry::index::indexable<TBoxPointerPair>, EqualFunctor > adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::Trtree

Trtreeit

template<typename TObject , typename TBoxGen , typename TComparator >

typedef Trtree::const_query_iterator adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::Trtreeit

Member Function Documentation

contains()

template<typename TObject , typename TBoxGen , typename TComparator >

bool adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::contains ( const TObject &  object )

inline

Returns true, if overall container has object, which is equal to function parameter, according to TComparator

Here is the call graph for this function:

find()

template<typename TObject , typename TBoxGen , typename TComparator >

TObject* adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::find ( const TObject &  object )

inline

Searches for an object pointer, which is equal to object according to TComparator. If found, returns valid pointer, otherwise 0.

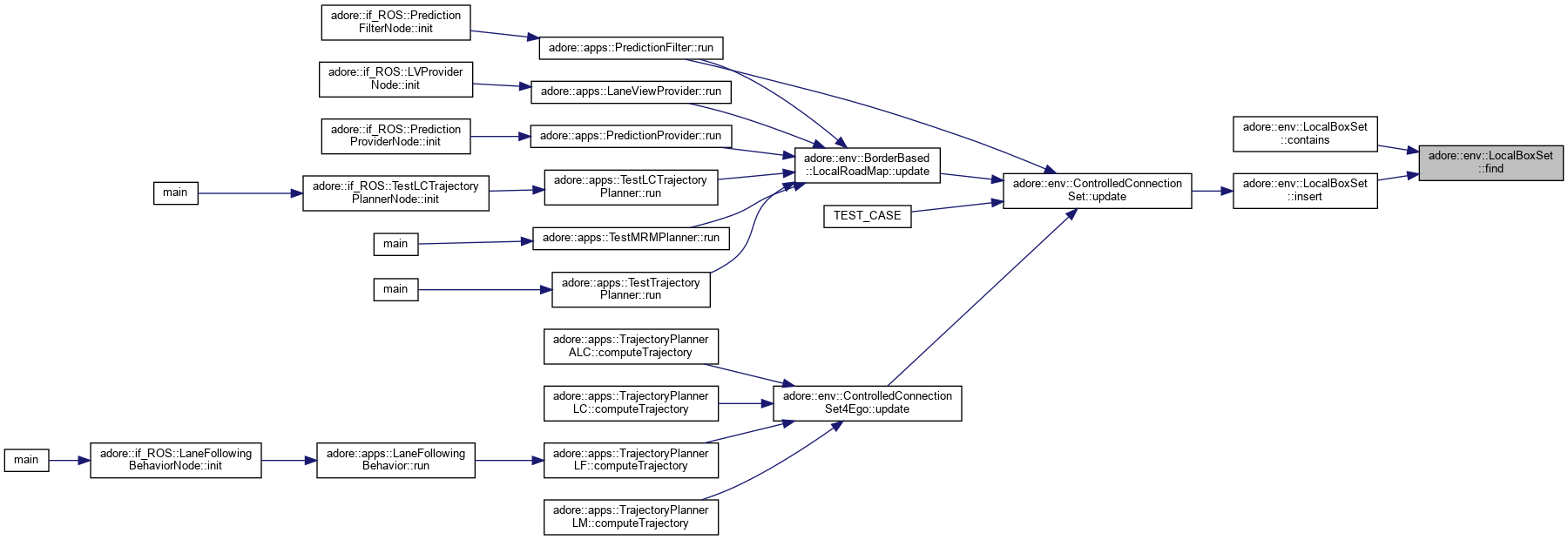

Here is the caller graph for this function:

getObjectsInRegion()

template<typename TObject , typename TBoxGen , typename TComparator >

itpair adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::getObjectsInRegion ( double  x0, double  y0, double  x1, double  y1  )

inline

Identifies all objects overlapping or included in a box-shaped region with llc (x0,y0) and urc (x1,y). Returns an iterator pair. The first entry of the pair is the current position and the second entry the end position.

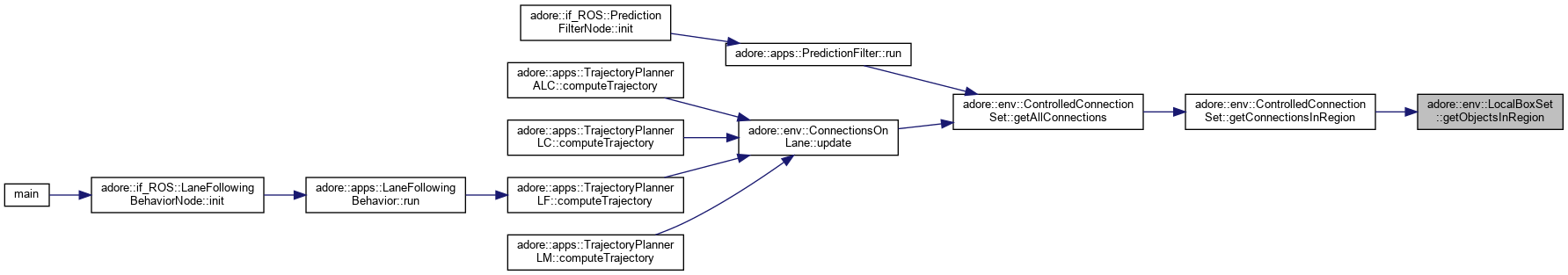

Here is the caller graph for this function:

getObjectsOutsideRegion()

template<typename TObject , typename TBoxGen , typename TComparator >

itpair adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::getObjectsOutsideRegion ( double  x0, double  y0, double  x1, double  y1  )

inline

Identifies all objects not overlapping or included in a box-shaped region with llc (x0,y0) and urc (x1,y). Returns an iterator pair. The first entry of the pair is the current position and the second entry the end position.

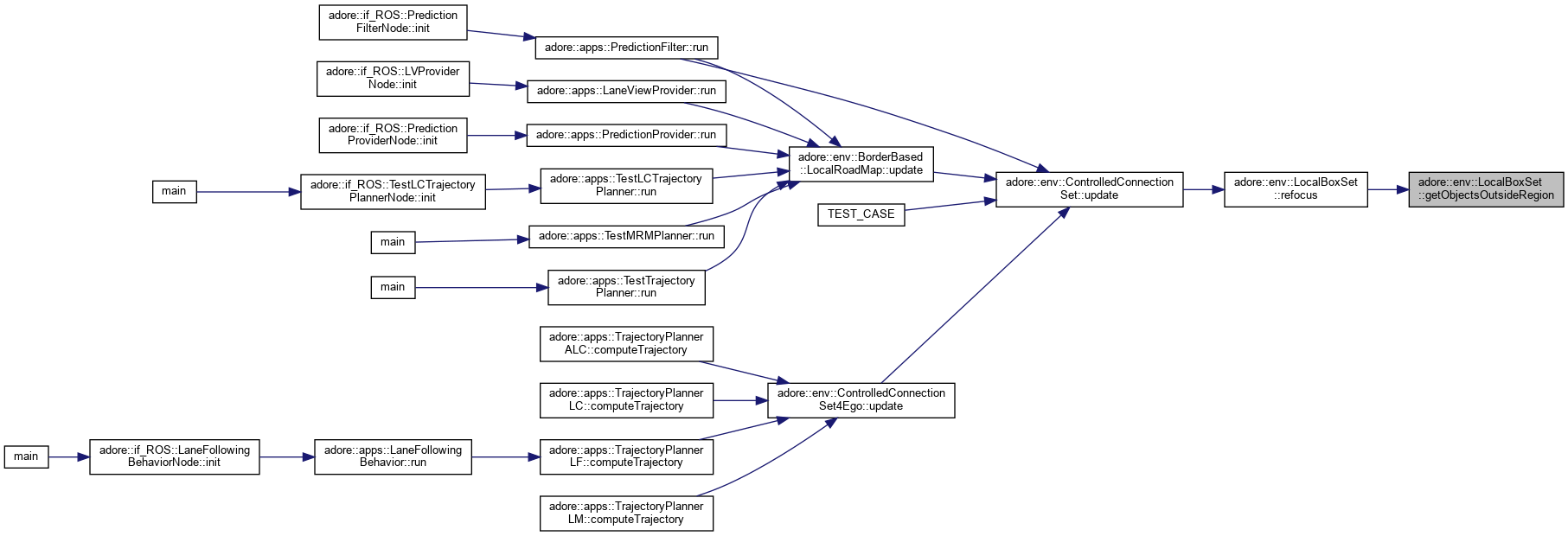

Here is the caller graph for this function:

insert()

template<typename TObject , typename TBoxGen , typename TComparator >

void adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::insert ( const TObject &  object )

inline

< object responsible for comparison Inserts a TObject for a region specified by TBoxGen. If the object already exists (equality defined by TComparator), the old object is replaced.

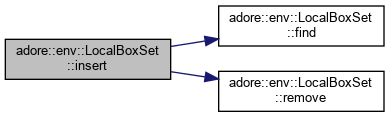

Here is the call graph for this function:

Here is the caller graph for this function:

refocus()

template<typename TObject , typename TBoxGen , typename TComparator >

void adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::refocus ( double  x0, double  y0, double  x1, double  y1  )

inline

Deletes and removes all objects from container, which are not included in or overlapping given box with llc (x0,y0) and urc (x1,y).

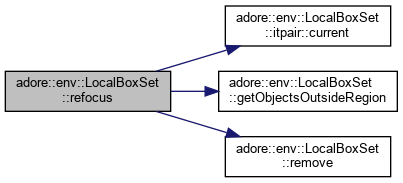

Here is the call graph for this function:

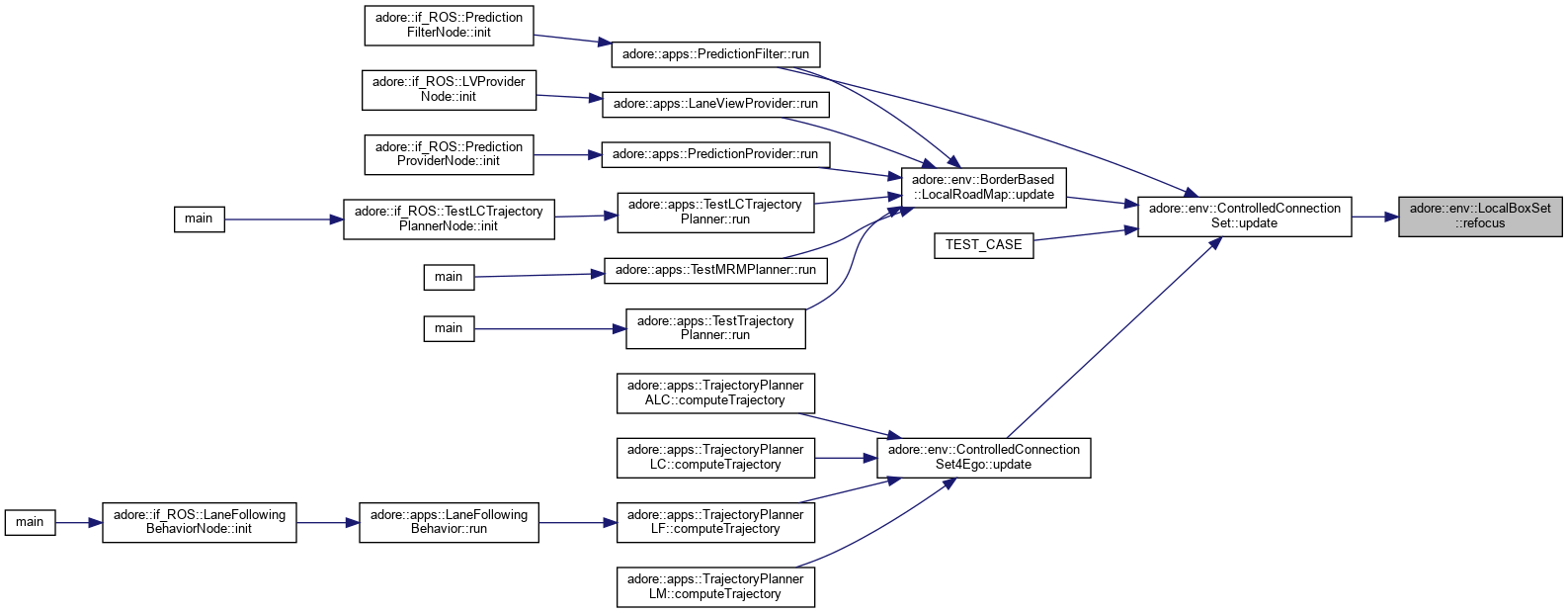

Here is the caller graph for this function:

remove()

template<typename TObject , typename TBoxGen , typename TComparator >

void adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::remove ( TObject *  object )

inline

Remove an object from the overall container

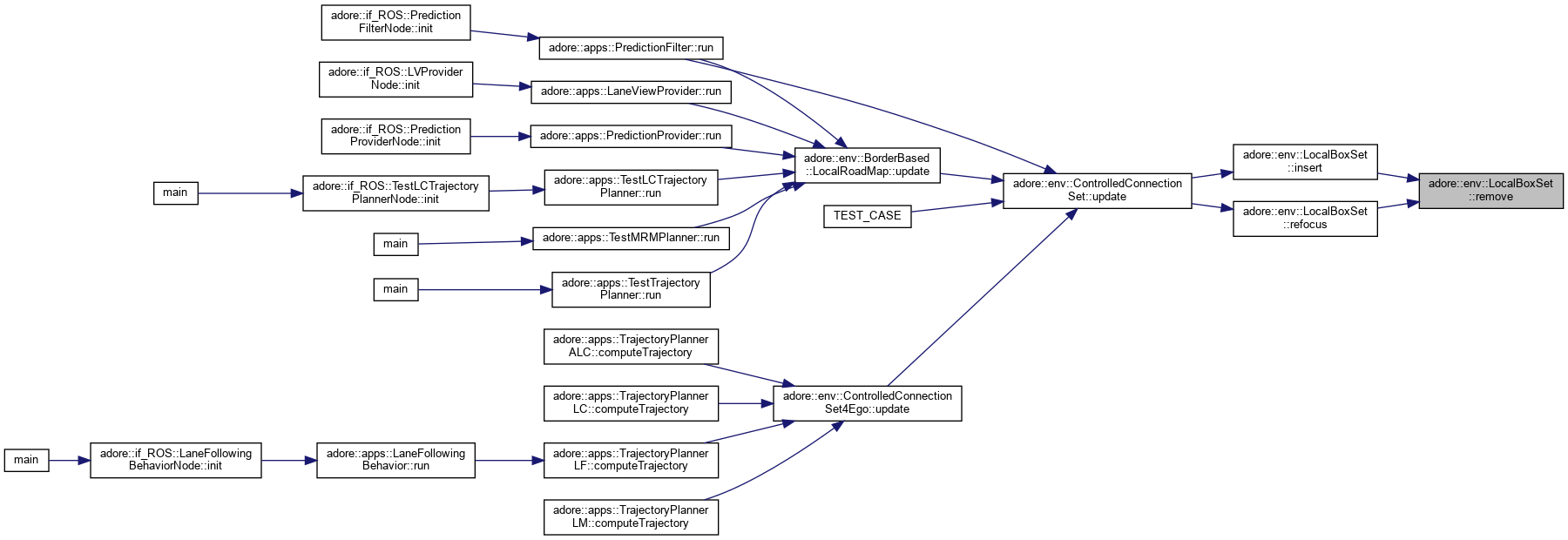

Here is the caller graph for this function:

size()

template<typename TObject , typename TBoxGen , typename TComparator >

int adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::size ( ) const

inline

get the number of contained objects

Here is the caller graph for this function:

Member Data Documentation

boxgen_

template<typename TObject , typename TBoxGen , typename TComparator >

TBoxGen adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::boxgen_

private

< the container

compare_

template<typename TObject , typename TBoxGen , typename TComparator >

TComparator adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::compare_

private

< object responsible for bounding box computation

data_

template<typename TObject , typename TBoxGen , typename TComparator >

Trtree adore::env::LocalBoxSet< TObject, TBoxGen, TComparator >::data_

private

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/env/include/adore/env/map/localboxset.h
