adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor > Class Template Reference

#include <vectorbasedvolumetree.h>

Collaboration diagram for adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >:

Classes
struct	SearchPosition
struct	SearchState

Public Types
typedef std::pair< std::pair< int, int >, VolumeType >	IndexedVolumeType
typedef std::vector< IndexedVolumeType >	VolumeVector

Public Member Functions
	VectorBasedVolumeTree ()
VolumeVector &	getLevel (int i)
const VolumeVector &	getLevel (int i) const
int	getOccupancyCount ()
const int	getOccupancyCount () const
void	setPreferredBranchingFactor (int f)
void	insert (const VolumeType &volume)
int	getLevelCount () const
void	remove_all_levels ()
void	compute_all_levels ()
void	recompute_levels ()
void	setLevelCount (int count)
template<typename MetricFunctor , typename OtherVolumeType , typename OtherFunctorType >
bool	compute_min (const VectorBasedVolumeTree< OtherVolumeType, OtherFunctorType > &other, double cutoff, double &result_value, const MetricFunctor &f) const

Private Attributes
BoundingFunctor	bound_
std::vector< VolumeVector >	levels_
int	branching_factor_
bool	levels_ok_

Detailed Description

template<typename VolumeType, typename BoundingFunctor>
class adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >

A class, which implements a hierarchical volume representation based on st::vector. Template parameter VolumeType: Type of collected data Template parameter BoundingFunctor: Computes bound for a range in a vector of VolumeType: Has to implement "IndexedVolumeType operator()(const VolumeVector& vector,int i0,int i1)const"

Member Typedef Documentation

IndexedVolumeType

template<typename VolumeType , typename BoundingFunctor >

typedef std::pair<std::pair<int,int>,VolumeType> adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::IndexedVolumeType

VolumeVector

template<typename VolumeType , typename BoundingFunctor >

typedef std::vector<IndexedVolumeType> adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::VolumeVector

Constructor & Destructor Documentation

VectorBasedVolumeTree()

template<typename VolumeType , typename BoundingFunctor >

adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::VectorBasedVolumeTree ( )

inline

Member Function Documentation

compute_all_levels()

template<typename VolumeType , typename BoundingFunctor >

void adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::compute_all_levels ( )

inline

computes a maximum number of levels (at most 1000)

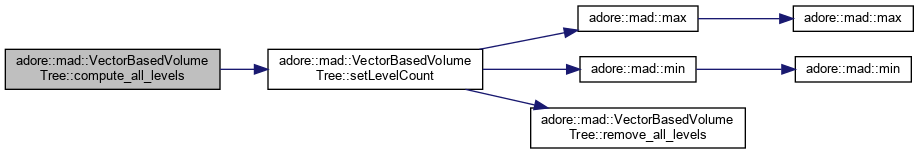

Here is the call graph for this function:

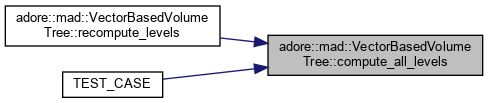

Here is the caller graph for this function:

compute_min()

template<typename VolumeType , typename BoundingFunctor >

template<typename MetricFunctor , typename OtherVolumeType , typename OtherFunctorType >

bool adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::compute_min ( const VectorBasedVolumeTree< OtherVolumeType, OtherFunctorType > &  other, double  cutoff, double &  result_value, const MetricFunctor &  f  ) const

inline

computes the minimum value of a distance metric specified by MetricFunctor: double operator()(const VolumeType& a,const OtherFolumeType& b)const

Parameters

cutoff	metric values above cutoff are ignored for min computation
result_value	is set, if returns true, to the minimum value

Returns

true, if any value below cutoff appears

getLevel() [1/2]

template<typename VolumeType , typename BoundingFunctor >

VolumeVector& adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::getLevel ( int  i )

inline

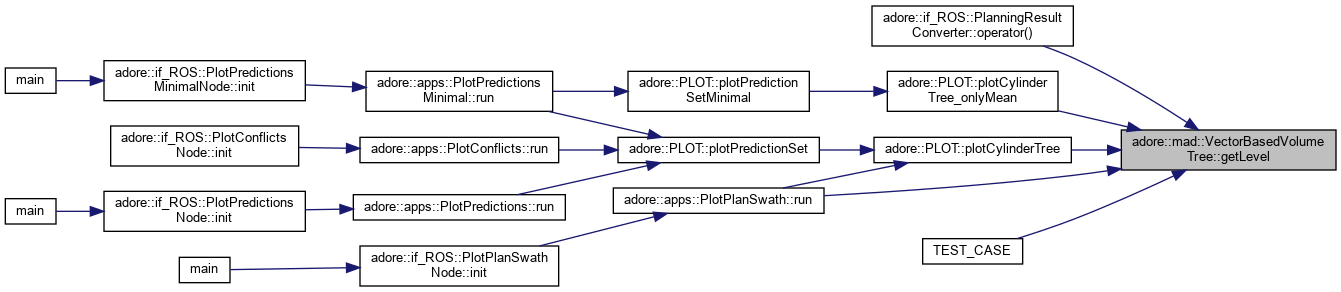

Here is the caller graph for this function:

getLevel() [2/2]

template<typename VolumeType , typename BoundingFunctor >

const VolumeVector& adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::getLevel ( int  i ) const

inline

getLevelCount()

template<typename VolumeType , typename BoundingFunctor >

int adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::getLevelCount ( ) const

inline

Returns

number of levels after base

Here is the caller graph for this function:

getOccupancyCount() [1/2]

template<typename VolumeType , typename BoundingFunctor >

int adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::getOccupancyCount ( )

inline

returns size of levels[0]

Here is the caller graph for this function:

getOccupancyCount() [2/2]

template<typename VolumeType , typename BoundingFunctor >

const int adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::getOccupancyCount ( ) const

inline

insert()

template<typename VolumeType , typename BoundingFunctor >

void adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::insert ( const VolumeType &  volume )

inline

inserts an occupancy volume in levels_[0]

Here is the caller graph for this function:

recompute_levels()

template<typename VolumeType , typename BoundingFunctor >

void adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::recompute_levels ( )

inline

recomputes all levels, if levels are not ok

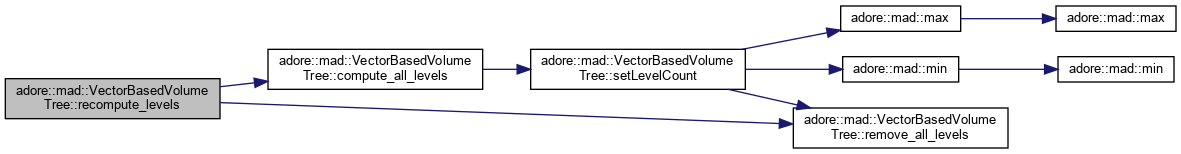

Here is the call graph for this function:

remove_all_levels()

template<typename VolumeType , typename BoundingFunctor >

void adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::remove_all_levels ( )

inline

removes bounding volume levels

Here is the caller graph for this function:

setLevelCount()

template<typename VolumeType , typename BoundingFunctor >

void adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::setLevelCount ( int  count )

inline

if the current level-count is higher then count, levels are removed until count is achieved if the current level-count is smaller, additional levels are added, until count is achieved or until highest level contains only one element

Here is the call graph for this function:

Here is the caller graph for this function:

setPreferredBranchingFactor()

template<typename VolumeType , typename BoundingFunctor >

void adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::setPreferredBranchingFactor ( int  f )

inline

change branching factor

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

bound_

template<typename VolumeType , typename BoundingFunctor >

BoundingFunctor adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::bound_

private

helps to bound a range

branching_factor_

template<typename VolumeType , typename BoundingFunctor >

int adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::branching_factor_

private

determines how many bounding/occupancy volumes in levels_[i] are bounded by a single bounding volume in levels_[i+1]

levels_

template<typename VolumeType , typename BoundingFunctor >

std::vector<VolumeVector> adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::levels_

private

bounding and occupancy volumes organized as a tree: levels_[0] contains bounding volumes. if levels_[i] contains only a single bounding volume, then index range must include complete base_range and then i is the highest level.

levels_ok_

template<typename VolumeType , typename BoundingFunctor >

bool adore::mad::VectorBasedVolumeTree< VolumeType, BoundingFunctor >::levels_ok_

private

determines whether levels above 0 have to be recomputed

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/vectorbasedvolumetree.h
