adore::mad::FunctionModification_ReciprocalScalar< T > Class Template Reference

#include <alfunction.h>

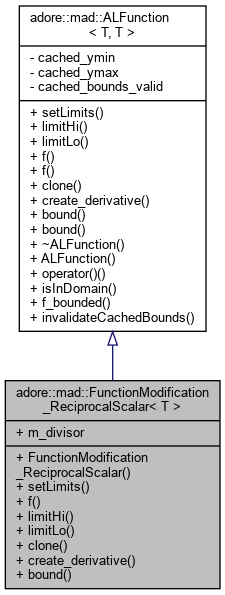

Inheritance diagram for adore::mad::FunctionModification_ReciprocalScalar< T >:

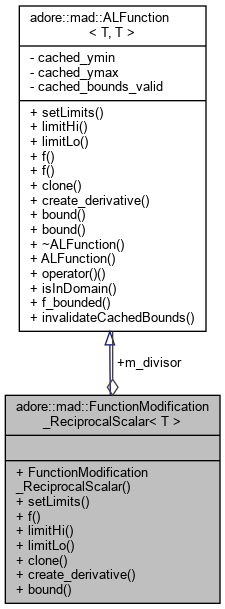

Collaboration diagram for adore::mad::FunctionModification_ReciprocalScalar< T >:

Public Types
typedef T	DT
typedef T	CT

Public Member Functions
	FunctionModification_ReciprocalScalar (ALFunction< T, T > *divisor)
virtual void	setLimits (DT lo, DT hi) override
virtual CT	f (DT x) const override
virtual DT	limitHi () const override
virtual DT	limitLo () const override
virtual ALFunction< DT, CT > *	clone ()
virtual ALFunction< DT, CT > *	create_derivative ()
virtual void	bound (const DT &xmin, const DT &xmax, CT &ymin, CT &ymax)
Public Member Functions inherited from adore::mad::ALFunction< T, T >
virtual void	f (T *xvec, T *yvec, unsigned int count) const
void	bound (T &ymin, T &ymax)
virtual	~ALFunction ()
	ALFunction ()
const T	operator() (T x) const
bool	isInDomain (T x)
T	f_bounded (T x)
void	invalidateCachedBounds ()

Public Attributes
ALFunction< T, T > *	m_divisor

Detailed Description

template<typename T>
class adore::mad::FunctionModification_ReciprocalScalar< T >

a helper class for computing 1/f(x)

Member Typedef Documentation

CT

template<typename T >

typedef T adore::mad::FunctionModification_ReciprocalScalar< T >::CT

DT

template<typename T >

typedef T adore::mad::FunctionModification_ReciprocalScalar< T >::DT

Constructor & Destructor Documentation

FunctionModification_ReciprocalScalar()

template<typename T >

adore::mad::FunctionModification_ReciprocalScalar< T >::FunctionModification_ReciprocalScalar ( ALFunction< T, T > *  divisor )

inline

Here is the caller graph for this function:

Member Function Documentation

bound()

template<typename T >

virtual void adore::mad::FunctionModification_ReciprocalScalar< T >::bound ( const DT &  xmin, const DT &  xmax, CT &  ymin, CT &  ymax  )

inlinevirtual

bound function values in the x-range defined by the hypercube between corner points lower left xmin and upper right xmax

Implements adore::mad::ALFunction< T, T >.

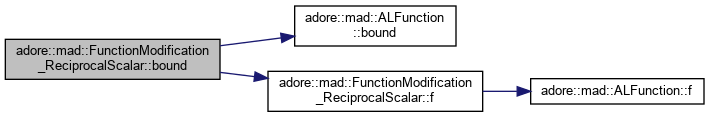

Here is the call graph for this function:

clone()

template<typename T >

virtual ALFunction<DT, CT>* adore::mad::FunctionModification_ReciprocalScalar< T >::clone ( )

inlinevirtual

create a copy of child class object - is used for function operations

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

create_derivative()

template<typename T >

virtual ALFunction<DT, CT>* adore::mad::FunctionModification_ReciprocalScalar< T >::create_derivative ( )

inlinevirtual

create a new function object, which is the derivative function

Implements adore::mad::ALFunction< T, T >.

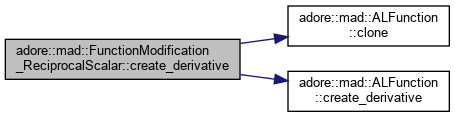

Here is the call graph for this function:

f()

template<typename T >

virtual CT adore::mad::FunctionModification_ReciprocalScalar< T >::f ( DT  x ) const

inlineoverridevirtual

function evaluation returns y of codomain type CT for a value x of domain type DT

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

Here is the caller graph for this function:

limitHi()

template<typename T >

virtual DT adore::mad::FunctionModification_ReciprocalScalar< T >::limitHi ( ) const

inlineoverridevirtual

query upper limit of the domain

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

limitLo()

template<typename T >

virtual DT adore::mad::FunctionModification_ReciprocalScalar< T >::limitLo ( ) const

inlineoverridevirtual

lower limit of the domain

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

setLimits()

template<typename T >

virtual void adore::mad::FunctionModification_ReciprocalScalar< T >::setLimits ( DT  lo, DT  hi  )

inlineoverridevirtual

reduce or increase the limit of the function, without changing y

Implements adore::mad::ALFunction< T, T >.

Here is the call graph for this function:

Member Data Documentation

m_divisor

template<typename T >

ALFunction<T, T>* adore::mad::FunctionModification_ReciprocalScalar< T >::m_divisor

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/alfunction.h
