adore::mad::FunctionCombination_Stack< T, Na, Nb > Class Template Reference

#include <alfunction.h>

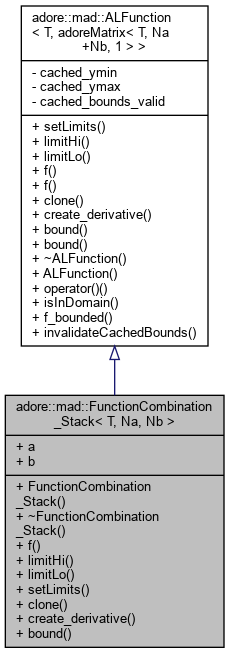

Inheritance diagram for adore::mad::FunctionCombination_Stack< T, Na, Nb >:

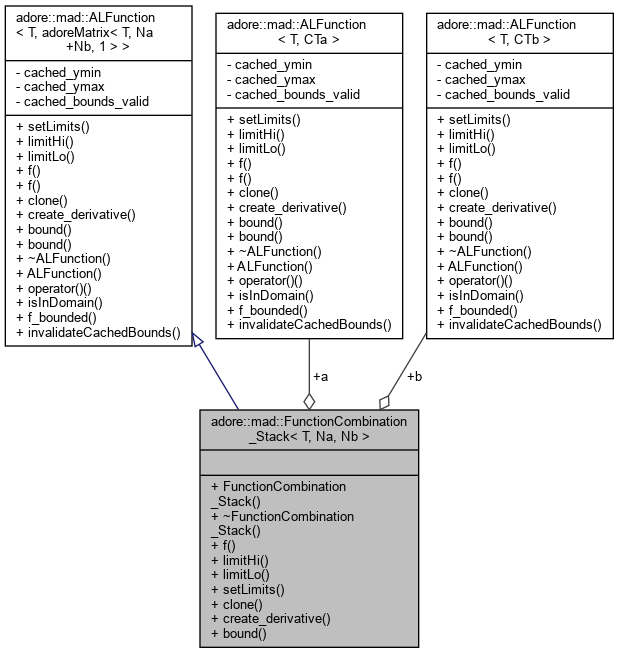

Collaboration diagram for adore::mad::FunctionCombination_Stack< T, Na, Nb >:

Public Types
typedef adoreMatrix< T, Na+Nb, 1 >	CT
typedef adoreMatrix< T, Na, 1 >	CTa
typedef adoreMatrix< T, Nb, 1 >	CTb
typedef T	DT

Public Member Functions
	FunctionCombination_Stack (ALFunction< T, CTa > *a, ALFunction< T, CTb > *b)
virtual	~FunctionCombination_Stack ()
virtual CT	f (T x) const override
virtual DT	limitHi () const override
virtual DT	limitLo () const override
virtual void	setLimits (DT lo, DT hi) override
virtual ALFunction< DT, CT > *	clone () override
virtual ALFunction< DT, CT > *	create_derivative () override
virtual void	bound (const DT &xmin, const DT &xmax, CT &ymin, CT &ymax) override
Public Member Functions inherited from adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >
virtual void	f (T *xvec, adoreMatrix< T, Na+Nb, 1 > *yvec, unsigned int count) const
void	bound (adoreMatrix< T, Na+Nb, 1 > &ymin, adoreMatrix< T, Na+Nb, 1 > &ymax)
virtual	~ALFunction ()
	ALFunction ()
const adoreMatrix< T, Na+Nb, 1 >	operator() (T x) const
bool	isInDomain (T x)
adoreMatrix< T, Na+Nb, 1 >	f_bounded (T x)
void	invalidateCachedBounds ()

Public Attributes
ALFunction< T, CTa > *	a
ALFunction< T, CTb > *	b

Detailed Description

template<typename T, int Na, int Nb>
class adore::mad::FunctionCombination_Stack< T, Na, Nb >

a helper class for combining a T^1->T^Na with a T^1->T^Nb function by stacking

Member Typedef Documentation

CT

template<typename T , int Na, int Nb>

typedef adoreMatrix<T, Na + Nb, 1> adore::mad::FunctionCombination_Stack< T, Na, Nb >::CT

CTa

template<typename T , int Na, int Nb>

typedef adoreMatrix<T, Na, 1> adore::mad::FunctionCombination_Stack< T, Na, Nb >::CTa

CTb

template<typename T , int Na, int Nb>

typedef adoreMatrix<T, Nb, 1> adore::mad::FunctionCombination_Stack< T, Na, Nb >::CTb

DT

template<typename T , int Na, int Nb>

typedef T adore::mad::FunctionCombination_Stack< T, Na, Nb >::DT

Constructor & Destructor Documentation

FunctionCombination_Stack()

template<typename T , int Na, int Nb>

adore::mad::FunctionCombination_Stack< T, Na, Nb >::FunctionCombination_Stack ( ALFunction< T, CTa > *  a, ALFunction< T, CTb > *  b  )

inline

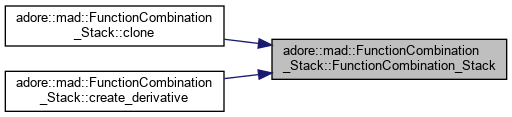

Here is the caller graph for this function:

~FunctionCombination_Stack()

template<typename T , int Na, int Nb>

virtual adore::mad::FunctionCombination_Stack< T, Na, Nb >::~FunctionCombination_Stack ( )

inlinevirtual

Member Function Documentation

bound()

template<typename T , int Na, int Nb>

virtual void adore::mad::FunctionCombination_Stack< T, Na, Nb >::bound ( const DT &  xmin, const DT &  xmax, CT &  ymin, CT &  ymax  )

inlineoverridevirtual

bound function values in the x-range defined by the hypercube between corner points lower left xmin and upper right xmax

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

Here is the call graph for this function:

clone()

template<typename T , int Na, int Nb>

virtual ALFunction<DT, CT>* adore::mad::FunctionCombination_Stack< T, Na, Nb >::clone ( )

inlineoverridevirtual

create a copy of child class object - is used for function operations

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

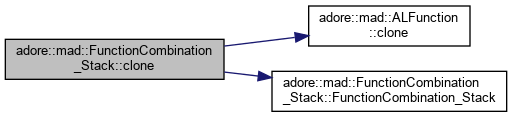

Here is the call graph for this function:

create_derivative()

template<typename T , int Na, int Nb>

virtual ALFunction<DT, CT>* adore::mad::FunctionCombination_Stack< T, Na, Nb >::create_derivative ( )

inlineoverridevirtual

create a new function object, which is the derivative function

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

Here is the call graph for this function:

f()

template<typename T , int Na, int Nb>

virtual CT adore::mad::FunctionCombination_Stack< T, Na, Nb >::f ( T  x ) const

inlineoverridevirtual

function evaluation returns y of codomain type CT for a value x of domain type DT

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

Here is the call graph for this function:

limitHi()

template<typename T , int Na, int Nb>

virtual DT adore::mad::FunctionCombination_Stack< T, Na, Nb >::limitHi ( ) const

inlineoverridevirtual

query upper limit of the domain

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

Here is the call graph for this function:

limitLo()

template<typename T , int Na, int Nb>

virtual DT adore::mad::FunctionCombination_Stack< T, Na, Nb >::limitLo ( ) const

inlineoverridevirtual

lower limit of the domain

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

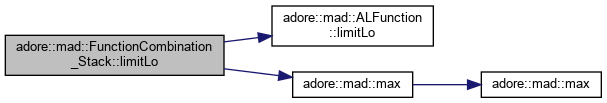

Here is the call graph for this function:

setLimits()

template<typename T , int Na, int Nb>

virtual void adore::mad::FunctionCombination_Stack< T, Na, Nb >::setLimits ( DT  lo, DT  hi  )

inlineoverridevirtual

reduce or increase the limit of the function, without changing y

Implements adore::mad::ALFunction< T, adoreMatrix< T, Na+Nb, 1 > >.

Here is the call graph for this function:

Member Data Documentation

a

template<typename T , int Na, int Nb>

ALFunction<T, CTa>* adore::mad::FunctionCombination_Stack< T, Na, Nb >::a

b

template<typename T , int Na, int Nb>

ALFunction<T, CTb>* adore::mad::FunctionCombination_Stack< T, Na, Nb >::b

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/alfunction.h
