adore::mad::FunctionCombination_Chain< DTa, CTa, DTb > Class Template Reference

#include <alfunction.h>

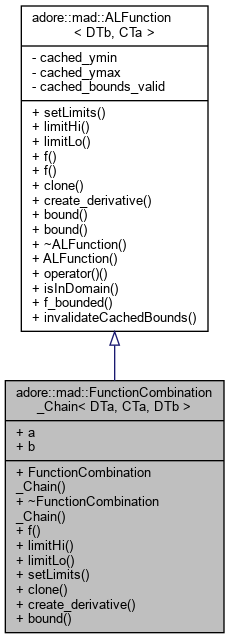

Inheritance diagram for adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >:

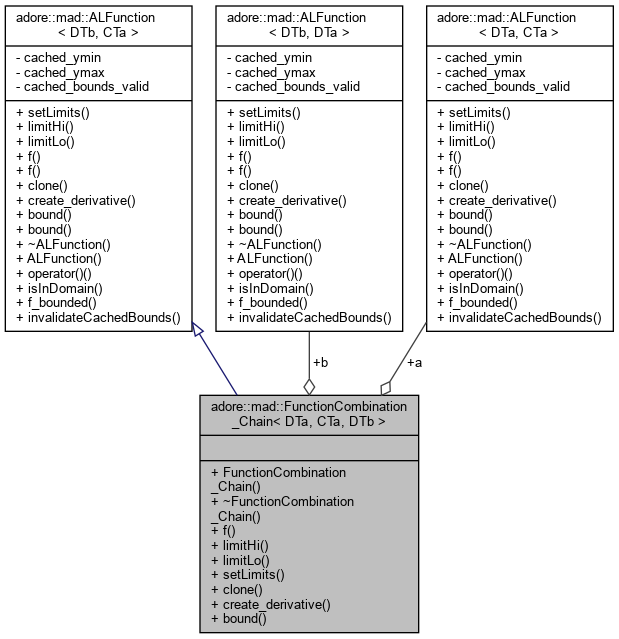

Collaboration diagram for adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >:

Public Types
typedef DTb	DT
typedef CTa	CT

Public Member Functions
	FunctionCombination_Chain (ALFunction< DTa, CTa > *a, ALFunction< DTb, DTa > *b)
virtual	~FunctionCombination_Chain ()
virtual CTa	f (DTb x) const override
virtual DTb	limitHi () const override
virtual DTb	limitLo () const override
virtual void	setLimits (DT lo, DT hi) override
virtual ALFunction< DT, CT > *	clone () override
virtual ALFunction< DT, CT > *	create_derivative () override
virtual void	bound (const DTb &xmin, const DTb &xmax, CTa &ymin, CTa &ymax) override
Public Member Functions inherited from adore::mad::ALFunction< DTb, CTa >
virtual void	f (DTb *xvec, CTa *yvec, unsigned int count) const
void	bound (CTa &ymin, CTa &ymax)
virtual	~ALFunction ()
	ALFunction ()
const CTa	operator() (DTb x) const
bool	isInDomain (DTb x)
CTa	f_bounded (DTb x)
void	invalidateCachedBounds ()

Public Attributes
ALFunction< DTa, CTa > *	a
ALFunction< DTb, DTa > *	b

Detailed Description

template<typename DTa, typename CTa, typename DTb>
class adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >

a helper class for combining two functions by chaining

Member Typedef Documentation

CT

template<typename DTa , typename CTa , typename DTb >

typedef CTa adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::CT

DT

template<typename DTa , typename CTa , typename DTb >

typedef DTb adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::DT

Constructor & Destructor Documentation

FunctionCombination_Chain()

template<typename DTa , typename CTa , typename DTb >

adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::FunctionCombination_Chain ( ALFunction< DTa, CTa > *  a, ALFunction< DTb, DTa > *  b  )

inline

Here is the caller graph for this function:

~FunctionCombination_Chain()

template<typename DTa , typename CTa , typename DTb >

virtual adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::~FunctionCombination_Chain ( )

inlinevirtual

Member Function Documentation

bound()

template<typename DTa , typename CTa , typename DTb >

virtual void adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::bound ( const DTb &  xmin, const DTb &  xmax, CTa &  ymin, CTa &  ymax  )

inlineoverridevirtual

bound function values in the x-range defined by the hypercube between corner points lower left xmin and upper right xmax

Implements adore::mad::ALFunction< DTb, CTa >.

Here is the call graph for this function:

clone()

template<typename DTa , typename CTa , typename DTb >

virtual ALFunction<DT, CT>* adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::clone ( )

inlineoverridevirtual

create a copy of child class object - is used for function operations

Implements adore::mad::ALFunction< DTb, CTa >.

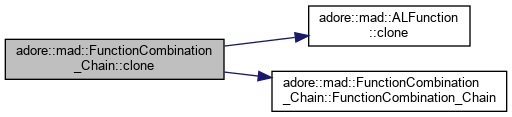

Here is the call graph for this function:

create_derivative()

template<typename DTa , typename CTa , typename DTb >

virtual ALFunction<DT, CT>* adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::create_derivative ( )

inlineoverridevirtual

create a new function object, which is the derivative function

Implements adore::mad::ALFunction< DTb, CTa >.

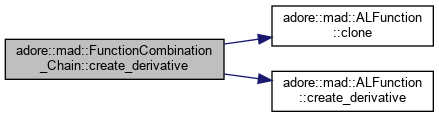

Here is the call graph for this function:

f()

template<typename DTa , typename CTa , typename DTb >

virtual CTa adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::f ( DTb  x ) const

inlineoverridevirtual

function evaluation returns y of codomain type CT for a value x of domain type DT

Implements adore::mad::ALFunction< DTb, CTa >.

Here is the call graph for this function:

limitHi()

template<typename DTa , typename CTa , typename DTb >

virtual DTb adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::limitHi ( ) const

inlineoverridevirtual

query upper limit of the domain

Implements adore::mad::ALFunction< DTb, CTa >.

Here is the call graph for this function:

limitLo()

template<typename DTa , typename CTa , typename DTb >

virtual DTb adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::limitLo ( ) const

inlineoverridevirtual

lower limit of the domain

Implements adore::mad::ALFunction< DTb, CTa >.

Here is the call graph for this function:

setLimits()

template<typename DTa , typename CTa , typename DTb >

virtual void adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::setLimits ( DT  lo, DT  hi  )

inlineoverridevirtual

reduce or increase the limit of the function, without changing y

Implements adore::mad::ALFunction< DTb, CTa >.

Here is the call graph for this function:

Member Data Documentation

a

template<typename DTa , typename CTa , typename DTb >

ALFunction<DTa, CTa>* adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::a

b

template<typename DTa , typename CTa , typename DTb >

ALFunction<DTb, DTa>* adore::mad::FunctionCombination_Chain< DTa, CTa, DTb >::b

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/alfunction.h
