adore::mad::CubicPiecewiseFunctionStatic< N > Class Template Reference

#include <cubicpiecewisefunctionstatic.h>

Collaboration diagram for adore::mad::CubicPiecewiseFunctionStatic< N >:

Public Member Functions
void	evaluate (int outN, double *input_x, double *output_y, double *output_dy=0, double *output_ddy=0, double *output_dddy=0)
void	evaluate_ordered (int outN, double *input_x, double *output_y, double *output_dy=0, double *output_ddy=0, double *output_dddy=0)
void	fit (double *input_x, double *input_y, double *input_w, double smoothingFactor)

Public Attributes
double	breaks [N]
double	coef_1 [N-1]
double	coef_2 [N-1]
double	coef_3 [N-1]
double	coef_4 [N-1]

Private Member Functions
void	evaluate1 (int i, int j, double *input_x, double *output_y, double *output_dy=0, double *output_ddy=0, double *output_dddy=0)

Detailed Description

template<int N>
class adore::mad::CubicPiecewiseFunctionStatic< N >

x x x x x x x x <- inputPoints #N x x x x
| | | | | | | | | | | | <- breaks #N. polynomials always between two input/break points y y y y y y <- differently spaced/arbitrary number output points

Member Function Documentation

evaluate()

template<int N>

void adore::mad::CubicPiecewiseFunctionStatic< N >::evaluate ( int  outN, double *  input_x, double *  output_y, double *  output_dy = 0, double *  output_ddy = 0, double *  output_dddy = 0  )

inline

Here is the call graph for this function:

evaluate1()

template<int N>

void adore::mad::CubicPiecewiseFunctionStatic< N >::evaluate1 ( int  i, int  j, double *  input_x, double *  output_y, double *  output_dy = 0, double *  output_ddy = 0, double *  output_dddy = 0  )

inlineprivate

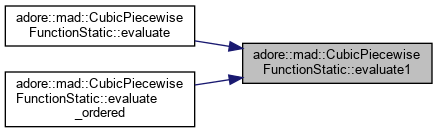

Here is the caller graph for this function:

evaluate_ordered()

template<int N>

void adore::mad::CubicPiecewiseFunctionStatic< N >::evaluate_ordered ( int  outN, double *  input_x, double *  output_y, double *  output_dy = 0, double *  output_ddy = 0, double *  output_dddy = 0  )

inline

evaluate_ordered is like evaluate, but expects input_x to be an ordered sequence of points. indexing can be greatly improved by this assumption.

Here is the call graph for this function:

fit()

template<int N>

void adore::mad::CubicPiecewiseFunctionStatic< N >::fit ( double *  input_x, double *  input_y, double *  input_w, double  smoothingFactor  )

inline

based on Schöneberg and Reinsch smoothing spline https://link.springer.com/content/pdf/10.1007/BF02162161.pdf https://en.wikipedia.org/wiki/Smoothing_spline https://wiki.dlr.de/confluence/display/fau/How+to+use+Fit+function size of input_x and input_y has to be N+1

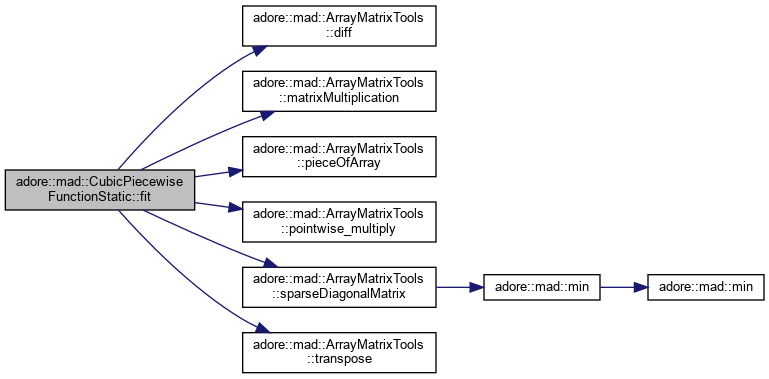

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

breaks

template<int N>

double adore::mad::CubicPiecewiseFunctionStatic< N >::breaks[N]

coef_1

template<int N>

double adore::mad::CubicPiecewiseFunctionStatic< N >::coef_1[N-1]

coef_2

template<int N>

double adore::mad::CubicPiecewiseFunctionStatic< N >::coef_2[N-1]

coef_3

template<int N>

double adore::mad::CubicPiecewiseFunctionStatic< N >::coef_3[N-1]

coef_4

template<int N>

double adore::mad::CubicPiecewiseFunctionStatic< N >::coef_4[N-1]

---

The documentation for this class was generated from the following file:

• /home/fascar/temp/adore/libadore/libadore/adore/mad/include/adore/mad/cubicpiecewisefunctionstatic.h
